Key Highlights

  • Uses H.264/H.265 compression for low bandwidth consumption without sacrificing quality
  • Accepts unlimited source inputs on an existing IP network from any location
  • Designed for use by enterprise organizations, casinos and hospitality, telemedicine, distance learning, stadiums, government facilities, and institutions of all types
  • Support options for 4K resolution, future support for higher resolutions--ready for future enhancements
  • Supports screen rotation and text overlay

Applications

  • Corporate announcements
  • Distance learning
  • Command & Control
  • Telemedicine

Environments

  • Workplaces
  • Schools
  • Command & Control centers
  • Healthcare facilities
  • Hospitality & Entertainment centers
  • Houses of Worship
  • Transportation hubs

Ultra High Quality Video

  • + High profile H.264 lossless compression

    + H.265 High Efficiency Video Coding compression

    + 4K resolution with 60 FPS output

    + Compatible with 1080p resolution screens

    + 24-bit true color with 4:4:4 color space

    + Low latency - end to end

    + Full HDCP support

Unlimited Scalability

  • + Any number of inputs & outputs in any combination

    + One source to many displays

    + Many sources to one display

    + Many sources to many displays

Flexible Control

  • + VIEW Virtual Matrix control application

    + Matrix view of all live sources & destinations

    + In-room controller - touch panel & web

    + 3rd-party control - AMX, Crestron, Utelogy

Standards-based

  • + Existing IP network infrastructure

    + Uses standard CAT 5e/6 cabling

    + Interoperates with 3rd-party systems

    + RTSP/UDP streaming

    + Backward compatible with 1080p VIEW Pro products

Video Composition & Video Wall

  • + Software license (one time, per unit)

    + Video-wall, Video-windowing, video-composition

    + Layout management

    + Text overlay, screen rotation

Configuration & Management

  • + Auto-discovery of encoders & decoders

    + Device configuration & management

    + Project management

    + System monitoring & troubleshooting

Video

  • Digital Video Connection: X1 HDMI 2.0a output
  • Supported Resolutions:
    • 4K60 DCI (Digital Cinema Initiatives) 4096×2160, 60 FPS
    • 4K60 UHDTV (Ultra High Definition TV) 3840×2160, 60 FPS
    • 1080p60 1920×1080
    • HD720 1280×720
    • UXGA 1600×1200
    • WSXGA+ 1680×1050
    • SXGA+ 1440×1080 & 1440×1050
    • WXGA 1440×900
    • SXGA 1280×1024
    • XGA 1024×768
    • SVGA 800×600
    • VGA 640×480
  • Compression Standard: • H.265 HEVC • H.264/MPEG4 Part 10 (AVC) • Baseline, Main, High profiles up to 4.2
  • Color Space Support: • 24-bit • RGB 4:4:4 • YCbCr 4:2:0
  • HDCP 2.1 Support
  • Scaling Support

Audio

  • 2 CH Balanced Analog Audio Output:
    • Maximum Input Amplitude: 20dBu
    • THD+N = .006% (20dBu input)
    • Dynamic Range: 106dB
    • Frequency Response: +/- 0.5dB (20- >20KHz)
    • Crosstalk: -80dB
    • Removable Phoenix 3.55mm (6 pos × 1)
  • 2 CH Unbalanced Analog Audio Input:
    • THD+N = -84dB, Dynamic Range = 90dBA
    • SNR = 95dBA
    • Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.)
    • Future 3.5mm phone jack (T/S/R 3 pos.)
    • (Currently not used)
  • 2 CH Unbalanced Analog Audio Output:
    • THD+N = -84dB, Dynamic Range = 95dBA
    • SNR = 95dBA
    • Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.)
  • Digital Audio I/O: • X1 output via HDMI port & 3.5mm mini TOSLINK • (Requires 3.5mm to TOSLINK adapter)
  • USB Audio: X1 Output (future)

Networking, Channels and Protocols

  • 10/100/1000 RJ45: X2 Gigabit ports
  • Video Streams (Channels): Up to 4K@60Hz OR 4096 × 2160 @ 60 Hz
  • Audio Streams (Channels): • Stereo or multi-ch pass through • Configured as 3 outputs of 2 Stereo analog, • or 1 Stereo or multi-ch digital
  • StreamNet Discovery & Control: Requires StreamNet Firmware 3.1x or higher

Control

  • Serial RS232 Port: DB9
  • IR Output:3.5mm phone jack (T/R 3 pos.) (Compatible with StreamNet and other IR Emitters)
  • IR Input: 3.5mm phone jack (T/S/R 3 pos.) (Compatible with StreamNet IR Sensor only)
  • USB 3.0, 2.0: Future support
  • GPIO Inputs: • X3, removable Phoenix 3.55mm (6 pos × 1) • Contact Closure sensor input
  • GPIO Outputs: X3, removable Phoenix 3.55mm (6 pos × 1) Latching Relay Contact Closure output 20V@1A Max

General

  • Power: 19VDC / @2A Normal Operation / @6A Max
  • Rear Panel Power Button: Short press safe power cycle / long press forced shut down
  • Power LED Color Status:
    State:LED Color
    Normal | Blue
    Boot | Green
    Error | Red
    Error | Red
    Upgrade | Amber

Mechanical

  • Dimensions (W x H x D): 12.2” × 7.4” × 1.75” (310mm × 188mm × 44.4mm)
  • Weight (Unit): 5.3Lbs (2.4Kg)
  • Mounting: Wall Mount, Rack Mount
  • Operating Temperature: 32 to 104 °F (0 to 40 °C)
  • Items Included: Power supply, Wall mount

Software Licenses

  • StreamNet Audio license
  • Audio Mixing License
  • PANORAMA TM Video-composition & Video-wall license
  • 3rd Party RTSP/UDP License
  • Local Playback License

Future Upgrade Options

  • USB HID Features (future license)

VIEW Pro Accessories

  • VIEW Pro Rack mount
  • VIEW Pro Wall mount
  • VIEW Pro IR Receiver
  • VIEW Pro IR Receiver & Emitter

Other VIEW Pro Products

  • 4K: VIEW Pro 4K Encoder E110-4K
    1080p:

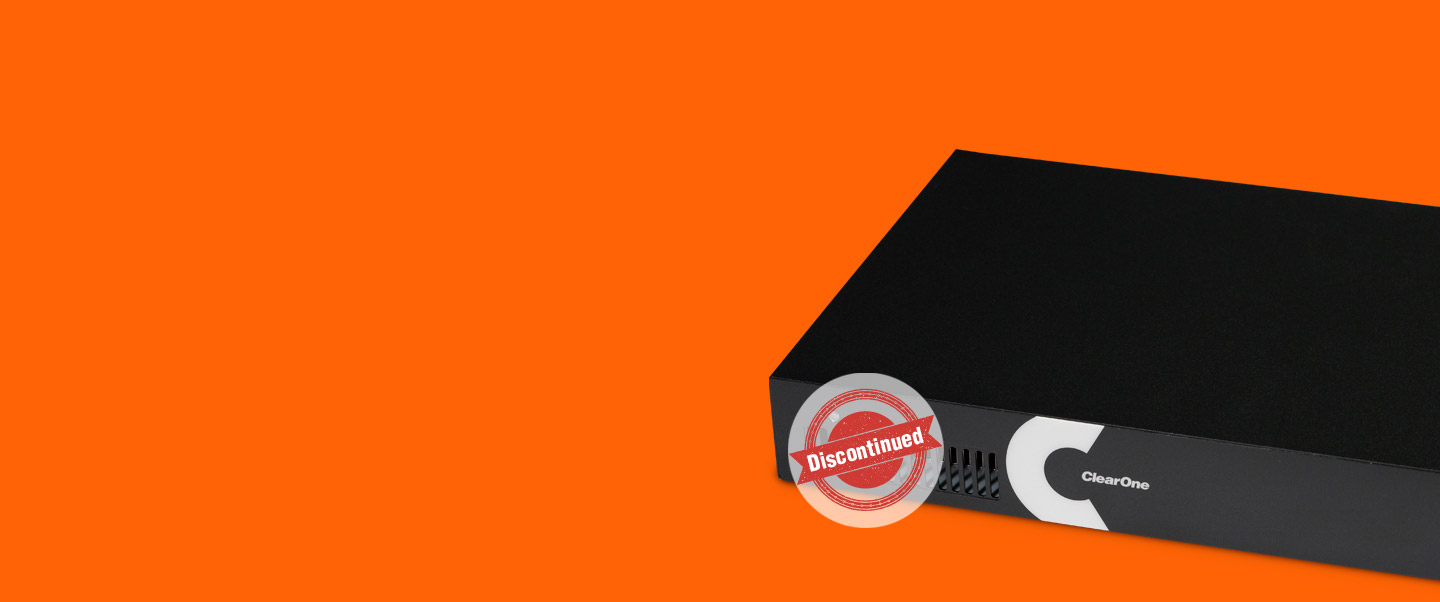

    - VIEW Pro Encoder E110
    - VIEW Pro Encoder E120

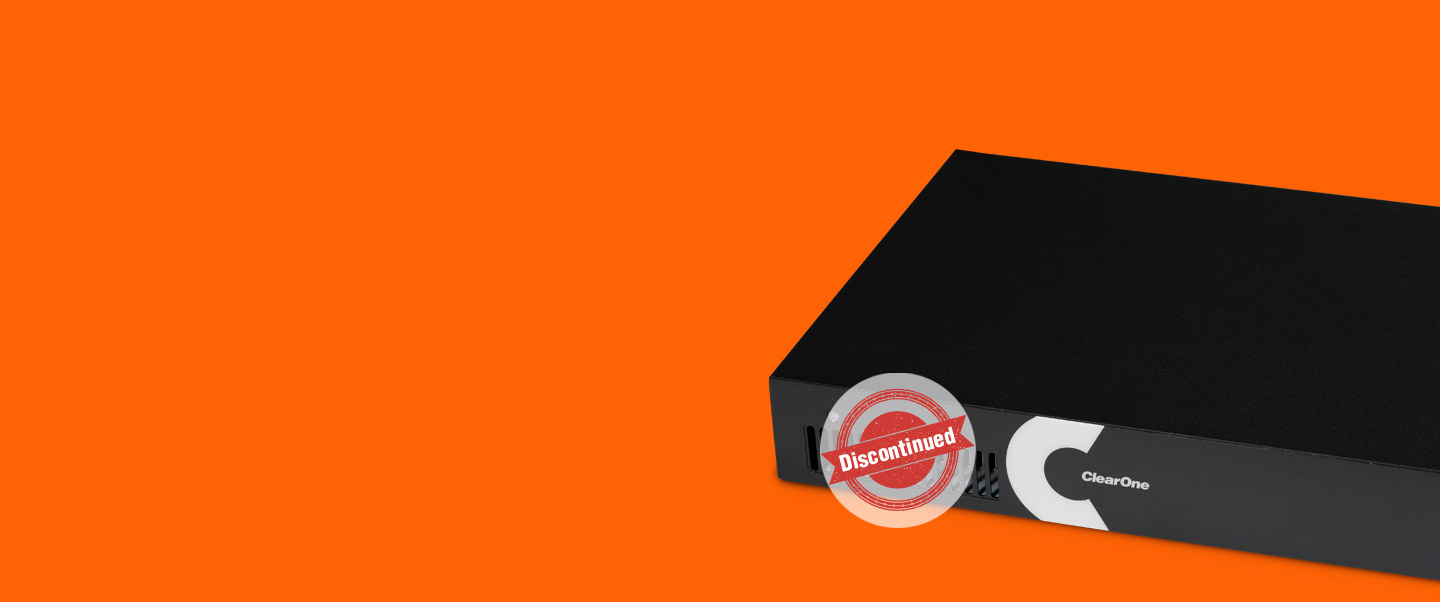

    - VIEW Pro Decoder D110
    - VIEW Pro Decoder D210

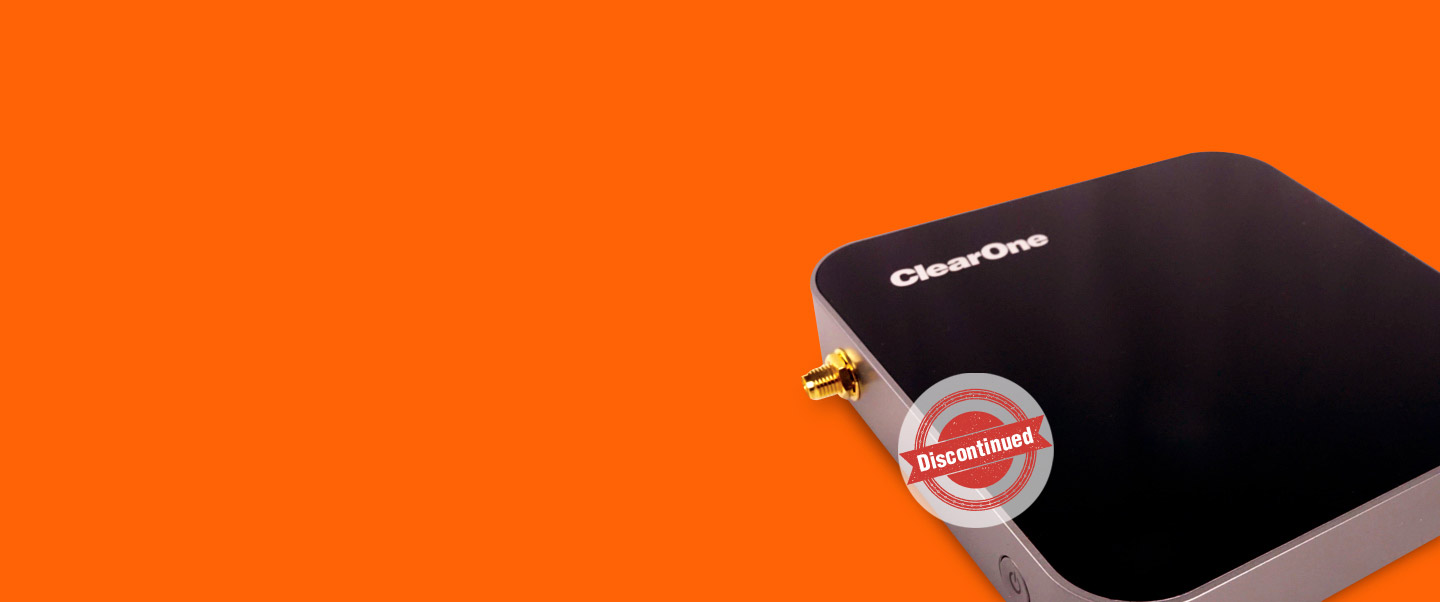

    - VIEW Pro Decoder D310
