Unmatched scalability and value combined with uncompromised delivery and quality of digital media to large display screens and video wall screens.

Key Highlights

  • High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:4:4 color space, HDCP for content protection
  • Low bandwidth consumption and unlimited scalability
  • Standards based streams that interoperates with 3rd party systems
  • Software based system for video wall and video composition features that replace hardware video processors
  • Provides frame-synchronized video output, highly desirable for video wall projects

Applications

  • Corporate announcements
  • Live streaming
  • Command & Control
  • Telemedicine
  • Digital signage

Workspaces

  • Workplaces
  • Schools
  • Command & Control centers
  • Healthcare facilities
  • Hospitality & Entertainment centers
  • Transportation hubs

Unmatched scalability and value combined with uncompromised delivery and quality of digital media to large display screens and video wall screens.

Ultra High-Quality Video

  • + High profile H.264 lossless compression

    + Full HD 1080p60 resolution

    + 24-bit true color with 4:4:4 color space

    + Ultra low latency—end-to-end

    + Full HDCP support

Unlimited Scalability

  • + Any number of inputs & outputs in any combination

    + One source to many displays

    + Many sources to one display

    + Many sources to many displays

Flexible Control

  • + VIEW Virtual Matrix control application

    + Matrix view of all live sources & destinations

    + In-room controller - touch panel & web

    + 3rd-party control - AMX, Crestron, Utelogy

Standards-based

  • + Existing IP network infrastructure

    + Uses standard CAT 5e/6 cabling

    + Interoperates with 3rd-party systems

    + RTSP/UDP streaming

Video Composition & Video Wall

  • + Software license (one time, per unit)

    + Video-wall, Video-windowing, video-composition

    + Layout management

    + Text overlay, screen rotation

Configuration & Management

  • + Auto-discovery of encoders & decoders

    + Device configuration & management

    + Project management

    + System monitoring & troubleshooting

Unmatched scalability and value combined with uncompromised delivery and quality of digital media to large display screens and video wall screens.

Video

  • Digital Video Connection: X1 HDMI 1.4a output
  • Supported Resolutions: 1080p60 1920×1080, HD720 1280×720, UXGA 1600×1200, WSXGA+ 1680×1050, SXGA+ 1440×1080 & 1440×1050, WXGA 1440×900, SXGA 1280×1024, XGA 1024×768, SVGA 800×600, VGA 640×480
  • Compression Standard: H.264/MPEG4 Part 10 (AVC) Baseline, Main, High profiles up to 4.2
  • Color Space Support: 24-bit, RGB 4:4:4, YCbCr 4:2:0
  • HDCP 2.1 Support / Scaling Support

Audio

  • 2 CH Balanced Analog Audio Output: Maximum Input Amplitude: 20dBu THD+N = .006% (20dBu input) Dynamic Range: 106dB Frequency Response: +/- 0.5dB (20->20KHz) Crosstalk: -80dB Removable Phoenix 3.55mm (6 pos × 1)
  • 2 CH Unbalanced Analog Audio Input: THD+N = -84dB Dynamic Range = 90dBA SNR = 95dBA Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.) Future 3.5mm phone jack (T/S/R 3 pos.) (Currently not used)
  • 2 CH Unbalanced Analog Audio Output: THD+N = -84dB, Dynamic Range = 95dBA SNR = 95dBA Crosstalk = -80dB, 3.5mm phone jack (T/S/R 3 pos.)
  • Digital Audio I/O: X1 output via HDMI port & 3.5mm mini TOSLINK (Requires 3.5mm to TOSLINK adapter)
  • USB Audio: X1 Output (future)

Networking, Channels and Protocols

  • 10/100/1000 RJ45: X2 Gigabit ports
  • Video Streams (Channels): 1 1080p@60Hz or 1920×1200@57Hz
  • Audio Streams (Channels): Stereo or multi-ch pass through configured as 3 outputs of 2 Stereo analog, or 1 Stereo or multi- ch digital
  • StreamNet Discovery & Control: Requires StreamNet 3.1x or higher

Control

  • Serial RS232 Port: DB9
  • IR Output: 3.5mm phone jack (T/R 3 pos.) (Compatible with StreamNet and other IR Emitters)
  • IR Input: 3.5mm phone jack (T/S/R 3 pos.) (Compatible with StreamNet IR Sensor only)
  • USB 3.0, 2.0: Future support
  • GPIO Inputs: X3, removable Phoenix 3.55mm (6 pos × 1) Contact Closure sensor input
  • GPIO Outputs: X3, removable Phoenix 3.55mm (6 pos × 1) Latching Relay Contact Closure output 20V@1A Max

General

  • Power: 19VDC/@2A Normal Operation/@6A Max
  • Rear Panel Power Button: Short press safe power cycle/long press forced shut down
  • Power LED Color Status: Normal - Blue Boot - Green Error- Red Upgrade- Amber

Mechanical

  • Dimensions (W x H x D): 12.2” × 7.4” × 1.75” (310mm × 188mm × 44.4mm)
  • Weight (Unit): 5.3Lbs (2.4Kg)
  • Mounting: Wall, Rack, VESA 100x100 mm bracket
  • Operating Temperature: 32 to 104 °F (0 to 40 °C)
  • Items Included: Power supply, Wall mount

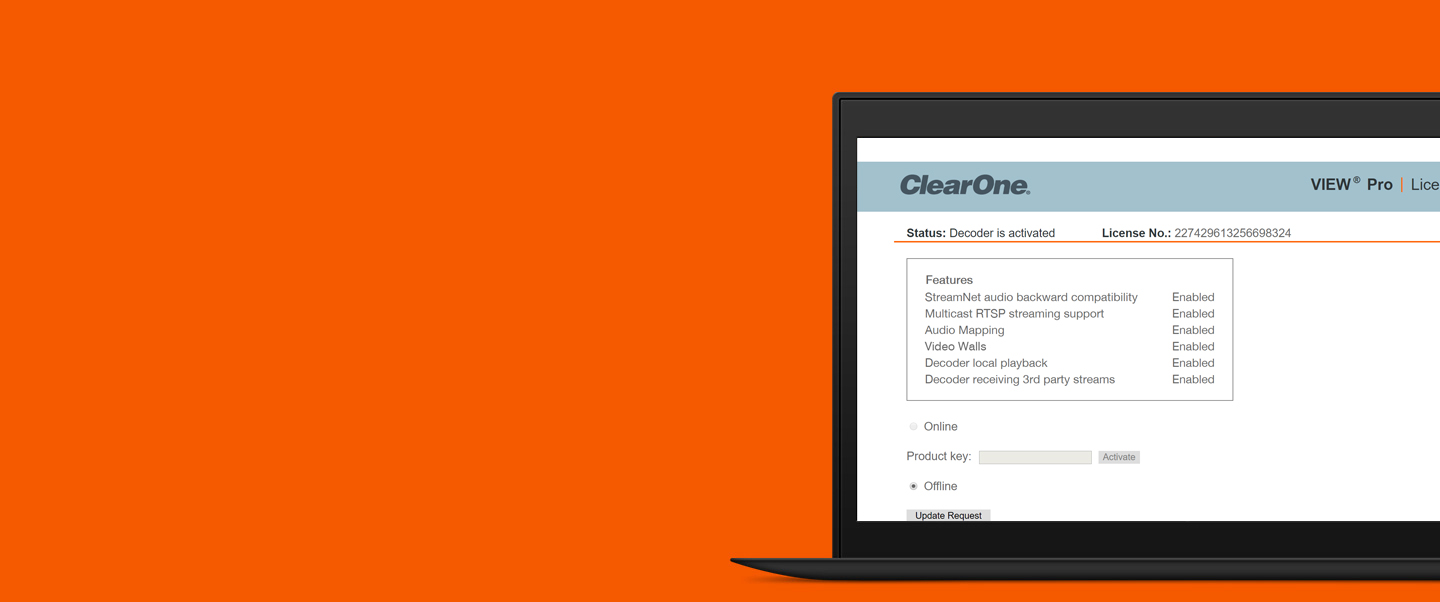

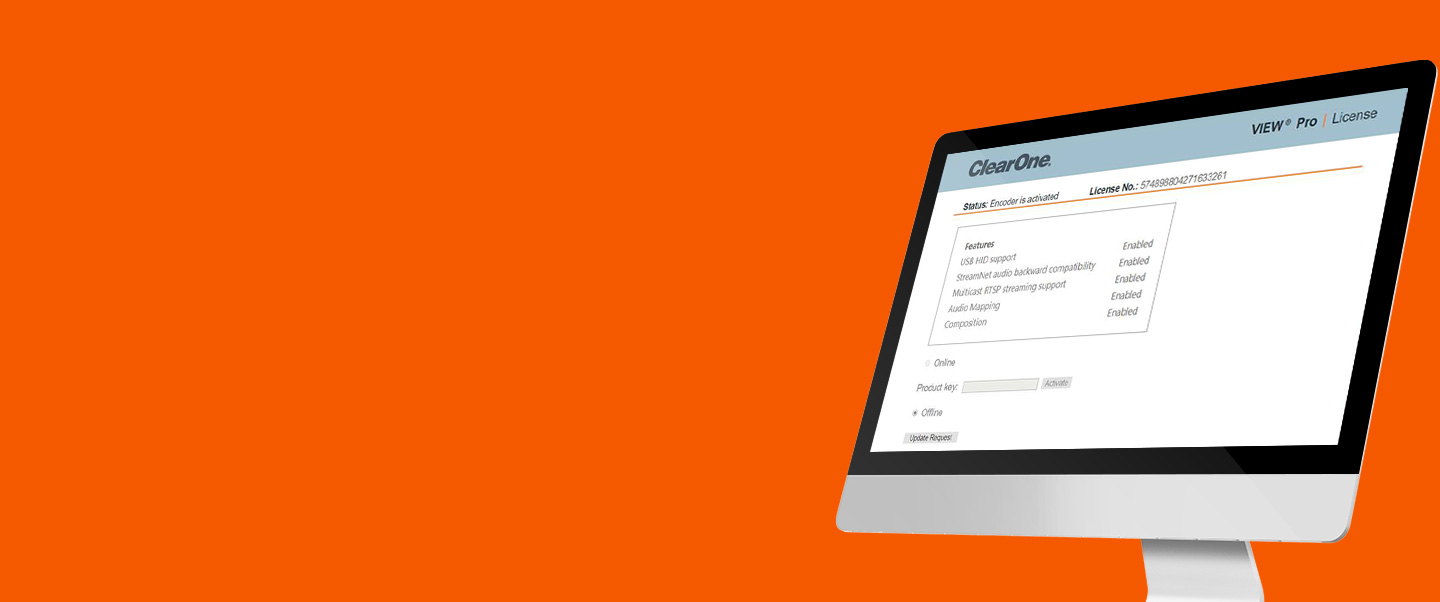

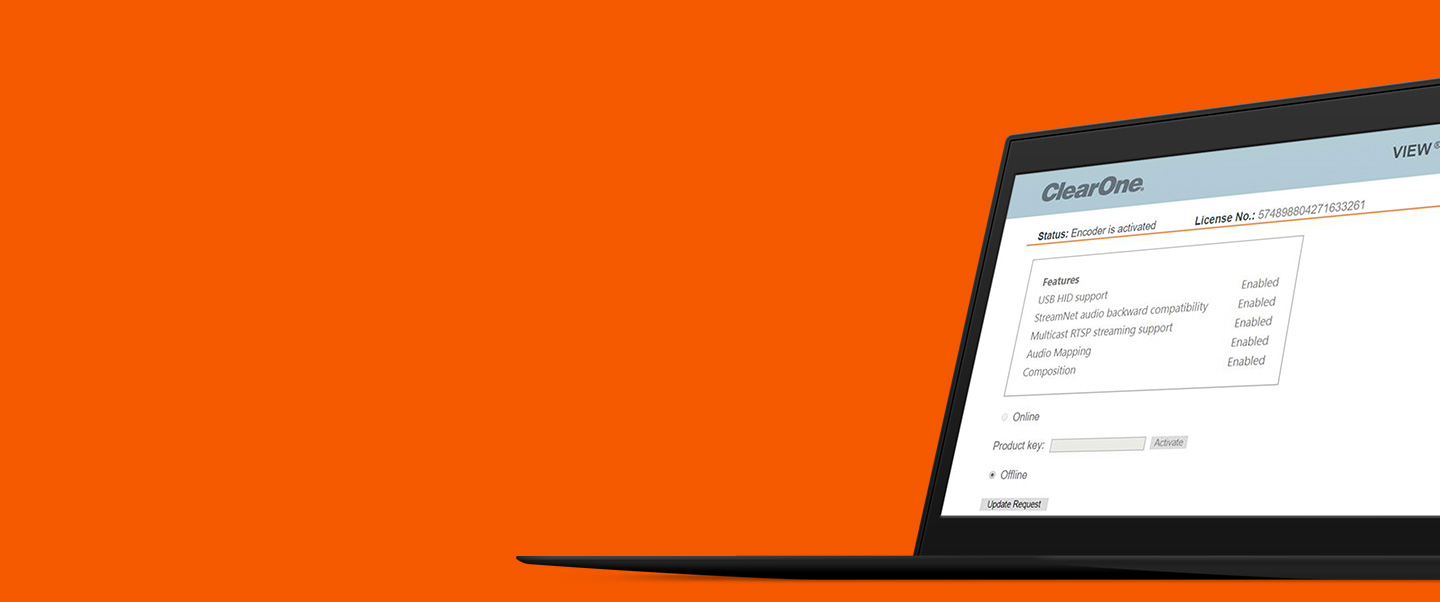

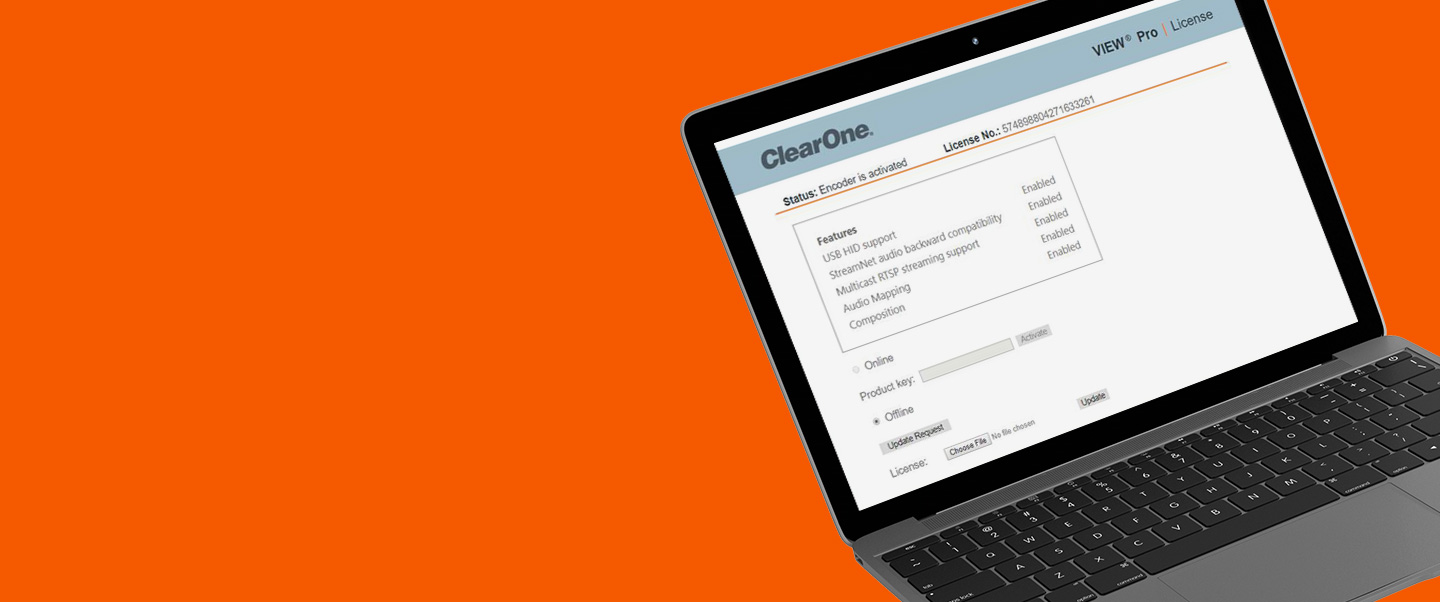

Software Licenses

  • PANORAMA™ Video-composition & Video-wall license
  • StreamNet Audio license
  • Audio Mixing License
  • 3rd-party RTSP/UDP License
  • Local Playback License

Future Upgrade Options

  • USB HID Features (future license)

VIEW Pro Accessories

  • VIEW Pro Rack mount
  • VIEW Pro Wall mount
  • VIEW Pro IR Receiver
  • VIEW Pro IR Receiver & Emitter
  • VIEW Pro VESA bracket
