With Aura, Professionals can now Re-imagine their Workspaces at Home

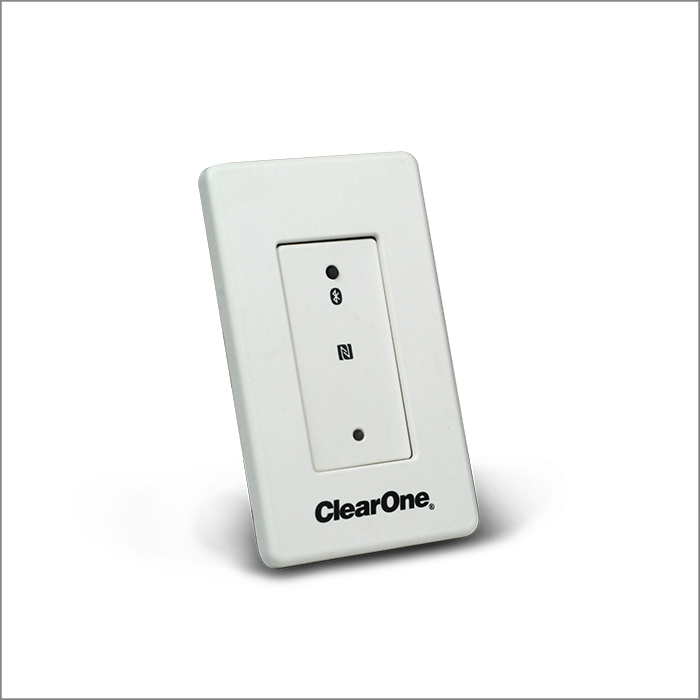

Bluetooth Wall Panel

MSRP: $649.00

SPECIAL PRICE: $616.55


  • Bluetooth pair name can be customized.
  • Bluetooth 3.0 compliant interface supports industry standard profiles for audio.
  • P-Link* makes wiring easy on systems using the CONVERGE® Huddle.
  • Has great range – up to 150 feet (45 meters).
  • Wall-mount design for convenient room access (single-gang electrical box).
  • FREE COLLABORATE® Space lifetime subscription — ClearOne’s high quality, award winning cloud-based video collaboration application.

  • AUR-3200-303 - Bluetooth Wall Panel

BLUETOOTH WIRELESS TECHNOLOGY

  • Version: 3.0
  • Mode: Bluetooth classic
  • Supported profiles
    • Hands-free profile v.1.6 (HFP)
    • Distribution profiles v.1.5 (A2DP, AVRCP)
  • Supported codec
    • Default SBC (44.1 kHz) do not list on datasheet, other upon request. Hands-free profile v.1.6 (HFP)
  • Wireless performance
    • Frequency Band: 2390 MHz to 2483.5 MHz
    • Transmit Power: +6.5 dBm
    • Receiver Sensitivity: -90 dBm3
    • Wireless Range: Up to 150 feet (45 meters)

INDICATORS AND MOMENTARY SWITCH

  • LED
    • Blinking blue - Ready to pair
    • Solid blue - Paired
  • Toggle switch
    • Press to reset Bluetooth - break Bluetooth connection and set into pairing mode

P-LINK IN (PROPRIETARY NETWORK)

  • RJ45: Cat5e, Cat6, P-Link In only
  • Cable Length: 200 ft (test up to 250 ft)

POWER CONSUMPTION

  • P-Link In, RJ45
  • 2.24 Watts

THERMAL

  • 7.64 BTU/Hr

OPERATING TEMPERATURE

  • 14° F/-10° C to 104° F/40° C

DIMENSIONS

  • 1.7” x 4.4” x 1.6” (44 mm x 112.5 mm x 40 mm)

WEIGHT

  • Product weight: .19 lb (88 g)
  • Shipping weight: .35 lb (.16 kg)

COMPLIANCE

This device complies with part 15 of the FCC Rules Operation is subject to the condition that this device does not cause harmful interference.

  • FCC ID: QOQWT32I
  • IC: 5123A-BGTWT32I
  • MIC ID: 209-J00089
  • KCC: MSIP-CRM-BGT-WT32i
