COMPATIBLE WITH




Enhance Your Cloud Collaboration

With Aura, Professionals can now Re-imagine their Workspaces at Home

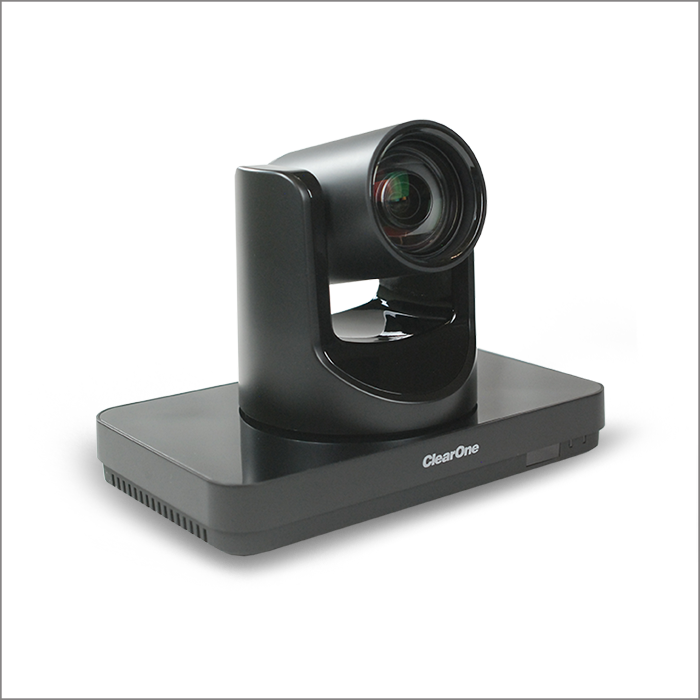

UNITE® 200 PTZ Camera
  • Full HD 1080p60 video and 12x optical zoom for high video quality, regardless of where the camera is installed in your professional home office.
  • Compatible with popular applications such as COLLABORATE® Space, Microsoft® Teams, WebEx™, Zoom™, Google® Meet™, and more.
  • Control the camera’s functions via IR remote, RS-232, or UVC protocol.
  • FREE COLLABORATE® Space lifetime subscription — ClearOne’s high quality, award winning cloud-based video collaboration application.
  • H.264/H.265 streaming and line-in interface to stream audio along with video over IP.
  • Simple USB 3.0/2.0 compatibility with UVC and UAC protocol support.
  • Super-high SNR with advanced 2D and 3D noise reduction.

  • AUR-2100-003 UNITE® 200 PTZ Camera

INCLUDES

VIDEO

  • VIDEO FORMATS: 1080p60, 1080p50, 71080i60, 1080i50, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • Sensor: 1/2.7 inch, CMOS
  • Effective pixel: 2.07M
  • Scanning mode: Progressive
  • Lens: 12x, f3.5 mm – 42.3 mm, f1.8 – f2.8
  • Minimal illumination: 0.5 lux @ (f1.8, Agc On)
  • Shutter: 1/30 S – 1/10000 S
  • White balance: Auto, indoor, outdoor, One-push, manual
  • Backlight Compensation: Supported
  • Digital Noise Reduction: 2D & 3D digital noise reduction
  • Video S/N: ≥55dB
  • Horizontal angle of view: 72.5° – 6.9°
  • Vertical angle of view: 44.8° – 3.9°
  • Horizontal rotation range: ±170°
  • Vertical rotation range: -30° – +90°
  • Pan speed range: 1.7° – 100°/S
  • Tilt speed range: 1.7° – 69.9°/S
  • H & V flip: Supported
  • Image freezing: Supported
  • Number of presets: 255
  • Flexible installation: Stand mount, upside-down mount

USB FEATURES

  • Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, MAC OS, Linux
  • Color System: YUV 4:2:2
  • USB video communication: UVC 1.0
  • UVC PTZ: Supported

COMPATIBILITY

  • HD Output: 1 x HDMI: Version 1.3
  • Network Interface: 1 x RJ45: 10 M / 100 M / 1000 M Adaptive Ethernet Port
  • Audio Input: 1-CH 3.5 mm Audio Interface, Line In
  • USB: 1 x USB3.0: type B Female jack 1 x USB2.0: type a Female jack (reserved interface)
  • Communication: 1 x Rs-232 in: 8-Pin Min din, Max distance: 30M, Protocol: VISCA/Pelco-D/Pelco-P 1 x RS-232 Out: 8-Pin Min din, Max distance: 30M, Protocols: VISCA network use Only 1 x RS485: Share with RS232 Out, Max distance: 1200 m, Protocol

POWER

  • Power Jack: JEITA type (DC In 12 V)
  • Input Voltage: DC 12 V
  • Power Consumption: 12 W (max)

ENVIRONMENTAL

  • Operating temperature: +14° F–104° F (-10° C – 40° C)
  • Storage temperature: -40° F – 140° F (-40° C – 60° C)

MECHANICAL

  • Dimensions (W x D x H): 9.45 x 5.67 x 6.30” (240 x 144 x 160 mm)
  • Weight: 3.6 lb (1.65 kg)

OPTIONAL ACCESSORIES
