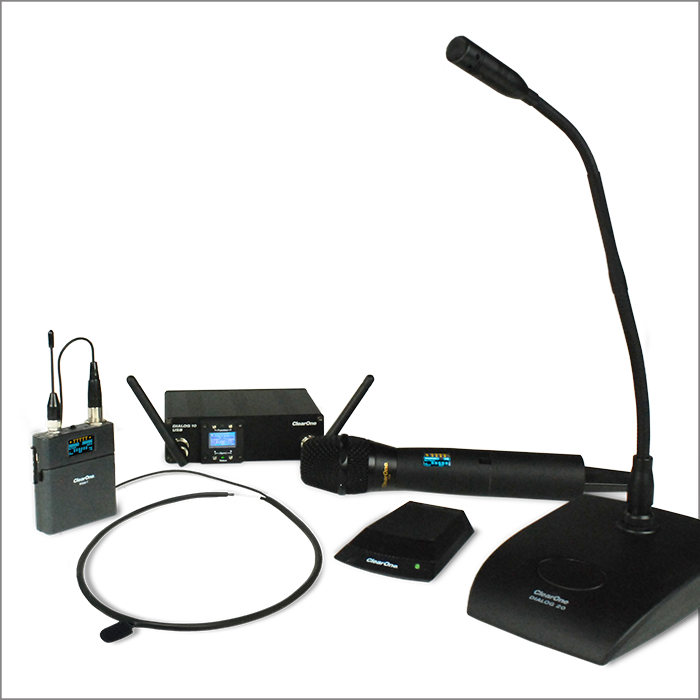

DIALOG® 10 USB


Note: Receiver requires atleast one transmitter.


*Lavalier, Headset and Lanyard Mic require a
 beltpack transmitter.
 These Transmitter choices require system Beltpack.
 5% Discount Applied.
 Please call +1.888.HEY.AURA for more information.

  • The perfect microphone for webcasting and cloud-based collaboration with Microsoft Teams, Zoom, WebEx, GoToMeeting, and others.
  • Plug-and-play simplicity coupled with wireless connectivity provides the ultimate convenience and freedom of movement. Allows you to focus on your message, not the wires!
  • Connect a USB Type C cable to your PC for audio, power, and control. No external power source or additional audio cables required.
  • Robust, frequency-hopping spread-spectrum technology with no frequency license restrictions world-wide.
  • Auto-scan feature finds open channels for optimal reception.
  • Standards-based FIPS 197 AES-128 encryption ensures a secure link for wireless audio.
  • Wide audio bandwidth provides superior speech clarity, and ultra-low audio latency enhances the audio experience.
  • Delivers exceptionally high-quality audio at a very affordable price.
  • Ideal for public events, live streaming, studio demonstrations, and classroom presentations in spaces up to 2500 square feet.
  • Great for personal events. Every home should have one!
  • Complete range of microphone options for any setting - Handheld, Boundary, and Gooseneck, plus Beltpack with Lanyard, Headset or Lavalier.
  • In multi-user environments, each user can be allocated their own microphone to pair with a common room receiver.
  • Large color LCD for viewing battery life, received signal strength, and programmable microphone ID labeling.
  • Microphones can be powered by common alkaline or environmentally friendly rechargeable NiMH AA batteries – charge via USB or optional charging dock.
  • Compact, plenum-rated receiver can be mounted on desktop, credenza, under table, behind video display, or even hidden above a ceiling. Mounting has never been more flexible and easy!

  • AUR-6100-010 DIALOG 10 USB Receiver (1 channel)

AUDIO

  • Frequency Response: 20 Hz to 20 kHz
  • Audio Sampling: 24 bit, 48 kHz
  • Signal to noise ratio: 109 dB(A)
  • Latency: < 4 ms
  • Output: USB audio

RADIO FREQUENCY

  • Radio Frequency: 2.4 GHz to 2.483 GHz
  • Technology: Adaptive frequency hopping
  • RF Range: 98’ / 30 m
  • Encryption: FIPS 197 AES-128 bit

RECEIVER

  • RF Sensitivity: -89 dBm
  • Display: Color LCD
  • Audio Output: +4 dBu
  • Interface: 1 x USB 3.0 type C, female
  • Antenna Connection: TNC
  • Power Consumption: 0.5 W
  • Antenna: dual dipole antenna
  • Mount: desktop, credenza, wall, or ceiling
  • Dimensions: 6.77 x 1.67 x 5.01” (172 x 42.3 x 127.5 mm)
  • Weight: 0.95 lbs (0.43 kg)

TRANSMITTERS

  • RF Output Power: 1 mW, 10 mW
  • Display: OLED (Handheld and Beltpack)
  • Power Supply: Battery or USB
  • Battery: AA size, rechargeable batteries
  • Battery Requirement: (2) AA batteries for Tabletop, Handheld, and Beltpack /(4) AA batteries for Gooseneck Podium
  • Talktime: (2) AA = 12 hrs, (4) AA = 15 hrs
  • Programmable Button: Push to Talk (PTT), Push to Mute firmware upgrade.

DIALOG 20 TRANSMITTERS[1]

  • 910-6101-001 Tabletop / Boundary (Cardioid)
  • 910-6101-011 Tabletop / Boundary (Omni)
  • 910-6102-061 Gooseneck / Podium, 6 inch (Cardioid)
  • 910-6100-121 Gooseneck / Podium, 12 inch (Cardioid)
  • 910-6101-181 Gooseneck / Podium, 18 inch (Cardioid)
  • 910-6103-001 Handheld transmitter with H18, Condenser, Cardioid Mic Capsule
  • 910-6103-011 Handheld Transmitter with H13, Dynamic, Super Cardioid Mic Capsule.
  • 910-6104-001 Beltpack Transmitter

ACCESSORIES

  • 910-6004-010 Lavalier Microphone for Beltpack (Omni)
  • 910-6004-040 Lavalier Microphone for Beltpack (Cardioid)
  • 910-6004-050 Lanyard Microphone for Beltpack (Omni)
  • 910-6004-020 Single-ear Headset, Black (Omni)
  • 910-6004-020-T Single-ear Headset, Tan (Omni)
  • 910-6004-400 4-Bay Docking Station
  • 910-6004-800 8-Bay Docking Station
  • 910-6105-011 Extension Antenna Kit, RG58 Cable, 10 ft
  • 910-6105-021 Extension Antenna Kit, RG8 Cable, 25 ft





[1] DIALOG 20 Wireless Transmitters are compatible with all DIALOG 10 and DIALOG 20 Receivers
