Most economical AV Decoder with 4:4:4 color space support for up to 4K30, 1080p60 resolutions; 4:2:0 color space support for up to 4K60 resolution Flexible power options with PoE and DC; Flexible control options with IR, RS232, USB HID

Key Highlights

  • Very low end-to-end (glass-to-glass) latency of around 1.5 frames / 25 ms
  • Up to 4K60 resolution support
  • PoE and DC power options
  • High bandwidth requirement of around 850 Mbps
  • USB HID for source control through keyboard and mouse

Applications

  • Corporate announcements
  • Video walls
  • Digital signage
  • Command centers

Workspaces

  • Workplaces
  • Schools
  • Hospitality centers
  • Entertainment centers
  • Transportation hubs
  • Command & Control centers

Most economical AV Decoder with 4:4:4 color space support for up to 4K30, 1080p60 resolutions; 4:2:0 color space support for up to 4K60 resolution Flexible power options with PoE and DC; Flexible control options with IR, RS232, USB HID

Video

  • Codec: JPEG2000
  • Bandwidth: 850 Mbps
  • HDMI OUT:
    - X1
    - Decoded stream resolution support up to 4K@50/60Hz 4:2:0, 4K @24/30Hz 4:4:4, 8-bit, with multi-channel audio

Audio

  • Audio Output: 3.5mm jack for analog audio output extract from HDMI

Control

  • Serial RS232 Port: 3.5mm phoenix jack for the serial data transmission
  • IR Input: 3.5mm phone jack for IR receiving
  • IR Output: 3.5mm IR jack for IR transmitting
  • USB Device:
    - USB Type-A connector

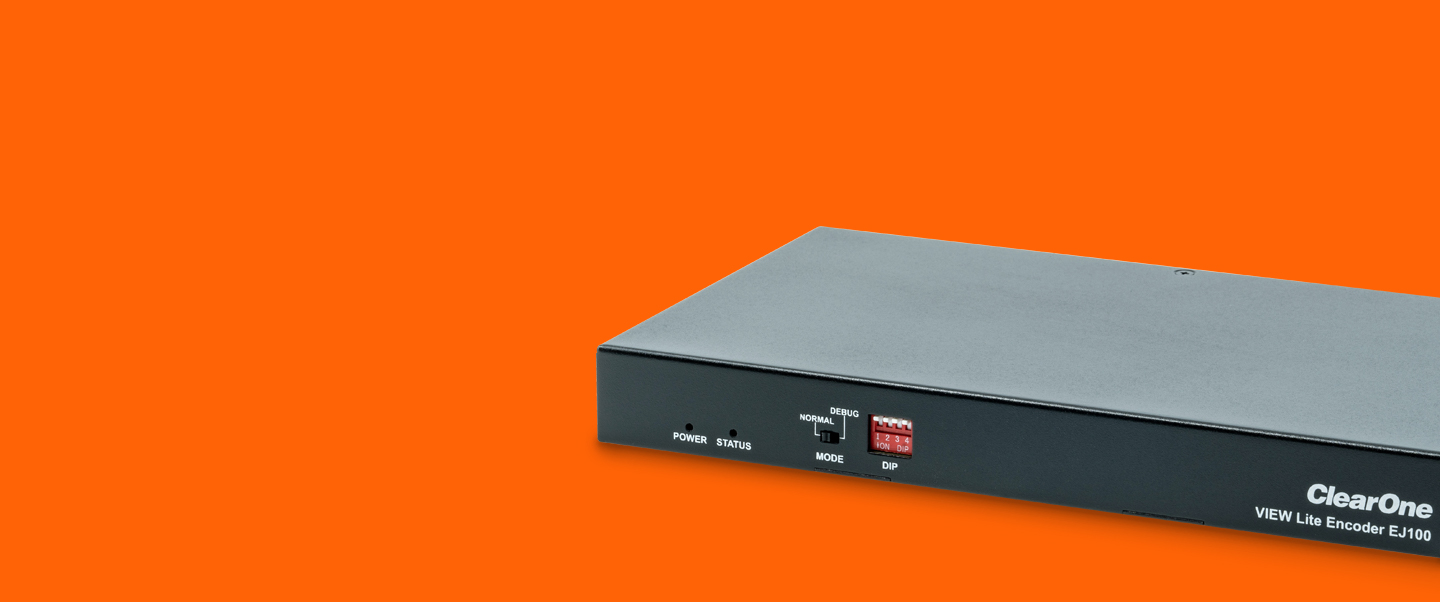

    - Connect to HID device, such as a mouse or keyboard, to control the Host device connected to the Encoder EJ100

General

  • LAN / PoE:
    - RJ-45 Ethernet jack with PoE support
    - IEEE 802.3AF PoE PD standard
    - 10/100/1000Mbps Ethernet Port
  • Reset:
    - Factory reset by pressing the button continuously for 5 seconds
    Modes:
    - NORMAL: Decoder’s RS232 is working for serial data transmission
    - DEBUG: Decoder’s RS232 is working for DEBUG
  • DIP:
    - For quick setting of multiple units working in the same network without Controller or PC software
  • Power: 12V 1A DC power supply with locking (included)

Mechanical

  • Dimensions (W x H x D): 8.7” × 1” × 5.1” (220mm × 25mm × 130mm)
  • Weight: 1.63 lbs (0.74 kg)
  • Mounting: Mounting ears included
  • Operating Temperature: 32 to 104 °F (0 to 40 °C)
