Key Highlights

  • One COLLABORATE Pro 300 appliance for point-to-point conferencing.
  • One UNITE 150® PTZ camera to see everything with 1080p / 30fps HD video, 12x optical zoom, and wide-angle view to capture all participants.
  • One CHAT® 150C speakerphone to communicate effortlessly with adaptive acoustic modeling, first-microphone priority plus echo and noise cancellation.
  • Complimentary 90-day COLLABORATE® Spontania, the premier cloud-based audio and video collaboration suite.

Applications

  • Audio and video conferencing
  • Interactive whiteboarding
  • Wireless presentation

Environments

  • Huddle spaces
  • Executive offices
  • Small to medium-size meeting rooms

System Includes

  • COLLABORATE Pro 300 codec
  • UNITE 150 PTZ camera
  • CHAT 150C speakerphone
  • Power supplies, cables and accessories
  • Spontania Cloud Meeting room subscription (90 days)
  • One-year support and maintenance with warranty

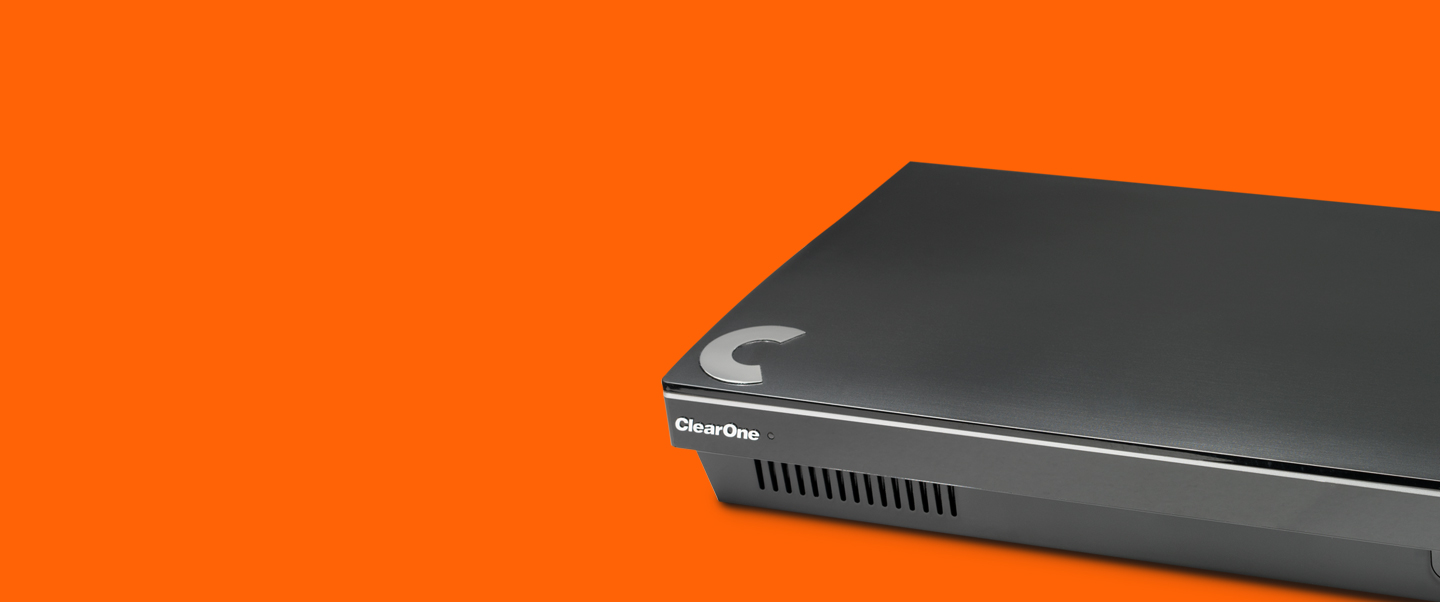

COLLABORATE Pro 300 Codec Appliance

  • Video inputs: 1x USB 3.0
  • Video outputs: 1x HDMI, 1x Display port
  • Audio inputs: USB (Digital audio)
  • Audio outputs: USB, S/PDIF
  • USB: 4x USB 3.0

UNITE 150 PTZ Camera

  • 12x Optical Zoom
  • 73° wide-angle view
  • USB 3.0
  • Full HD 1080p 30fps
  • Control: USB (UVC), RS-232
  • Pan/Tilt Angles: ±170°, Tilt: -30° to +90°

CHAT 150C Speakerphone

  • ClearOne HDConferenceTM audio processing
  • Three built-in microphone array with 360° pickup
  • Large loudspeaker with Max Output Level: 85 dB SPL @ 1 meter
  • Wideband audio frequency response (20Hz-20kHz)

Video Characteristics

  • Resolution up to 1080p @ 30 fps (Rx)
  • H.261, H.263, H.263+/++
  • H.264/AVC High Profile – up to 6Mbps
  • H.264/SVC (Skype for Business)

Audio Standards

  • 20KHz: AAC-LD
  • 14KHz: G.722.1 Annex C
  • 7KHz: G.722, G.722.1
  • 3.4KHz: G.711, G.723.1, G.728. G.729. AMR (3G)

Data Characteristics

  • H.239 support for data sharing
  • Resolution up to 1080p
  • Data inputs via wireless, datapoint (HDMI-to-USB adapter)

Control

  • Web-based management and control
  • Telnet API for 3rd-party control
  • AMX and Crestron modules

Directory Services

  • 1000+ local number directory
  • 10,000+ global number directory
  • H.350 support (thru COLLABORATE Central)
  • LDAP online directory support,
  • OpenLDAP
  • Active Search and Filter queries

Environments

  • Operating Temperature: 32° to 104° F (0° to 40 °C)
  • *At temps higher than 35°C, other environmental conditions may apply

Shipping Package

  • Dimension: 21 x 14.5 x 12 (inches)
  • Weight: 13 lbs

Part Number

  • 930-3001-300
