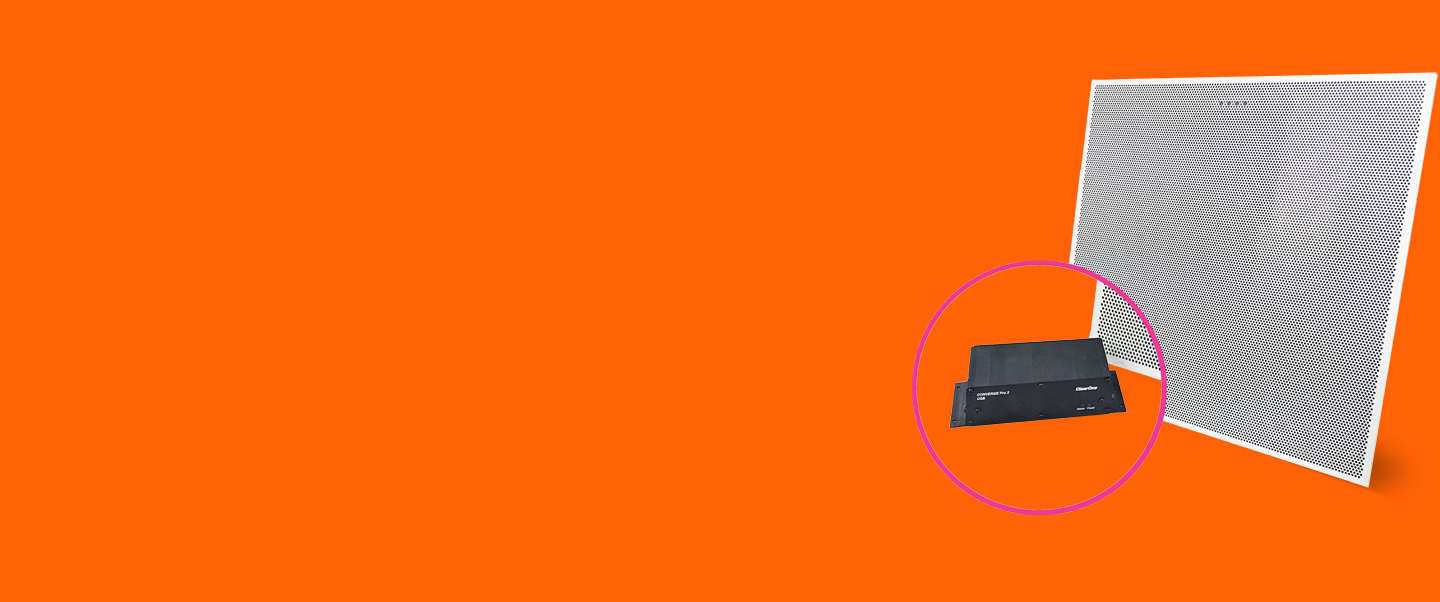

USB-enabled Beamforming Ceiling Tile mic brings cost-effective professional conferencing audio to small and medium sized rooms. With built-in AEC and adaptive steering (think of it as smart switching), the BMA CTH provides impeccable room coverage

Key Highlights

  • USB audio-enabled Beamforming Ceiling Tile microphone (BMA CTH) brings cost-effective professional conferencing audio to small-and mid-sized meeting rooms. Built-in AEC, noise cancellation, and adaptive steering (think of it as smart switching), provides impeccable room coverage.
  • Easily and quickly configure the system using CONSOLE® AI Lite software with Audio Intelligence™ and Auto Connect™.
  • Provides a convenient single USB cable connection to the laptop or room computer.
  • Add ClearOne’s CONVERGE® Wall-Mount Bluetooth Expander to enable mobile devices to join the conference wirelessly.
  • UNITE 50 4K camera provides a 120-degree wide-angle field of view.
  • ClearOne’s BMA technology is protected by at least a dozen patents and pending patent applications.
  • 2x10 Watt power amps drive the included 8-inch ceiling speakers.
  • Delivering unbeatable price, versatility, and coverage, the Versa Room CT dramatically enhances the room audio and video experience for any cloud-collaboration application.
  • Includes 50’ CAT6 cable, 33’ USB extender cable, PoE kit, ceiling speakers, and 50 feet of speaker cable

APPLICATIONS

  • Cloud-based video collaboration
  • Cloud-based audio conferencing
  • In-Room presentation

WORKSPACES

  • Executive offices
  • Small-to mid-sized meeting rooms
  • Boardrooms

USB-enabled Beamforming Ceiling Tile mic brings cost-effective professional conferencing audio to small and medium sized rooms. With built-in AEC and adaptive steering (think of it as smart switching), the BMA CTH provides impeccable room coverage

INCLUDES

  • CHOICE OF BMA CTH
    • BMA CTH 24in
    • BMA CTH 600mm
  • COLLABORATE Versa Hub
  • COLLABORATE Versa USB
  • UNITE 50 4K ePTZ Camera
  • Ceiling Loudspeakers
  • PoE power supply kit
  • RJ45 CAT6 Cable – 50’
  • USB 3.0 Cable – 33’
  • Speaker Cable – 50’

NOTE: See Component Datasheets for Full Specs

BMA CTH

24 MICROPHONES

  • Number of Beams: Two patterns, either 5 or 6 beams
  • Polar Pattern: Custom
  • Frequency Response: 150Hz – 16kHz, +/- 3dB
  • Dynamic Range: 150Hz – 16kHz, > 70dB

AMPLIFIER OUTPUT

  • Type: 5.08mm Black Header, Male, Phoenix type Euroblock
  • Audio: 2 channels
  • Output Power: 2x10W Max, 8Ω load*
  • Frequency Response: 20Hz – 22kHz @ +10dBu, +/ 0.5dB

CONFIGURATION

  • Acoustic Echo Cancellation (AEC) on/off
  • Noise Cancellation (NC) on/off
  • Automatic Level Control (ALC) on/off
  • Gain adjust
  • Mute on/off

POWER SELECTION SWITCH

  • Type: Slide Switch

CONFIGURATION & ADMINISTRATION SOFTWARE

  • CONSOLE® AI Room Software

MOUNTING

  • Ceiling mount (24” or 600mm drop-ceiling grid)

DIMENSIONS & WEIGHT

  • 24” BMA CTH
    • 23.72 x 23.72 x 2.13” (602.5 x 602.5 x 54.1mm)
  • 600 mm BMA CTH:
    • 592.5 x 592.5 x 54.1 mm (23.33 x 23.33 x 2.13”)
    • Unit Weight: 7.7lbs (3.5kg)

COLLABORATE VERSA USB

  • Port Type: USB-B Connector
  • Audio: Digital audio, 2 x 2 bidirectional channels
  • Sample Rate: 48 kHz
  • Sample Bit Depth: 24 Bit
  • Compatible: USB 2.0, USB 3.0
  • USB Cable Distance: 16 feet (5 meters)
  • Compatible: Windows & Mac OS devices

P-LINK PERIPHERAL BUS

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • P-Link In & Out: Proprietary Peripheral Bus
  • PoE In:
    • P-Link In Port
    • PoE 802.3af Mode B, Midspan
    • Power on “spare pairs” 4,5 and 7,8
  • Cable: Solid core 24AWG, factory terminated Cat 5e or Cat 6 cable
  • Distance: Up to 200 feet (60 meters)

POWER SELECTION SWITCH

  • Sensor Type: Slide Switch
  • Toggle toward P-Link to power device by P-Link
  • Toggle toward PoE to power device by PoE Injector

PoE In PORT

  • Port Type: RJ-45 port
  • PoE: 802.3af or 802.3at PoE/PoE+ injector input

MOUNTING

  • Rack-shelf Mount, Under-Table Mount, Wall Mount, Ceiling Mount

DIMENSION & WEIGHT

  • Width x Depth x Height:

    • Without rack-ears:
      • 5.5” x 1.6” x 4.1” or 14.4 x 4.2 x 10.3cm
    • With rack-ears:
      • 6.8” x 1.7” x 4.1” or 17.2 x 4.3 x 10.3cm
    • Unit Weight: 0.88 lbs (0.4 kg)

VERSA HUB

  • 1x USB 3.0 (Type-B) for laptop (Requires Display Link driver on laptop)
  • 2x USB 3.0 (Type-A) for UNITE camera & CHAT Speakerphone
  • 4x USB 2.0 ports
  • 1x HDMI out
  • 1x DVI out

CEILING LOUDSPEAKERS

  • Speaker Type: 2-way, ceiling speaker with metal back can
  • Frequency Range: 65 Hz to 20 kHz
  • Power Handling: 60 Watts RMS, 120 Watts Peak
  • Nominal Sensitivity: • 88 dB, 1W @ 1m
  • Nominal Impedance: • 8 Ohms
  • Transformer Taps:
    • 70V – 30W, 15W, 7.5W, 3.8W, 1.9W
    • 100V – Null, 30W, 15W, 7.5W, 3.8W
  • Woofer: 6.5” (165mm) poly-propylene cone with moisture-resistant coating
  • Tweeter: ¾” (19mm) silk dome
  • Overload Protection: Full range power limiter with the 8 ohm direct input only, protecting the tweeter, woofer and crossover
  • Dimensions: 10.24” (260mm) diameter, 7.40” (188mm) deep
  • Net Weight (each): 3.5 Kg (7.71 lb)

SYSTEM POWER & THERMAL

  • Power Type: PoE/PoE+
  • Port Type: RJ-45
  • PoE In/P-Link In: 802.3af or 802.3at PoE/PoE+
  • Power Source: PoE Injector or equivalent
  • PoE: IEEE 802.3at compliant devices providing 56V and 640 mA (36 W).
  • P-Link In - Mode B
  • Power Consumption:
    • 100-240VAC, 50/60Hz, 3 Watts Typical
    • 38W at max power 1kHz (2 x 10W)
    • Thermal: 130 BTU/Hr at max power
    • Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature

PART NUMBERS

930-3200-020 - COLLABORATE Versa Room CT

INCLUDES

  • 910-3200-205 BMA CTH 24
  • 910-3001-100 COLLABORATE Versa Hub
  • 910-3200-305 COLLABORATE Versa USB
  • 910-2100-006 UNITE 50 4K ePTZ Camera
  • 910-151-001-01 Ceiling Loudspeakers
  • 910-3200-202 PoE power supply kit
  • 910-3200-204-50 RJ45 CAT6 Cable – 50’
  • 910-3200-702-30 USB 3.0 Cable – 33’
  • 693-153-050 Speaker Cable – 50’

930-3200-020-I - COLLABORATE Versa Room CT INTL

INCLUDES

  • 910-3200-205-I BMA CTH 600mm
  • 910-3001-100 COLLABORATE Versa Hub
  • 910-3200-305 COLLABORATE Versa USB
  • 910-2100-006 UNITE 50 4K ePTZ Camera
  • 910-151-001-01 Ceiling Loudspeakers
  • 910-3200-202 PoE power supply kit
  • 910-3200-204-50 RJ45 CAT6 Cable – 50’
  • 910-3200-702-30 USB 3.0 Cable – 33’
  • 693-153-050 Speaker Cable – 50

OPTIONAL CLEARONE PERIPHERALS

  • CONVERGE Wall-Mount Bluetooth Expander

MOUNTS FOR NON-TILE CEILINGS

  • 910-3200-210 BMA Surface-Mount Kits 24in
  • 910-3200-210-I BMA Surface-Mount Kits 600mm
  • 910-3200-212 BMA Recessed-Mount Kits 24in
  • 910-3200-212-I BMA Recessed-Mount Kits 600mm
