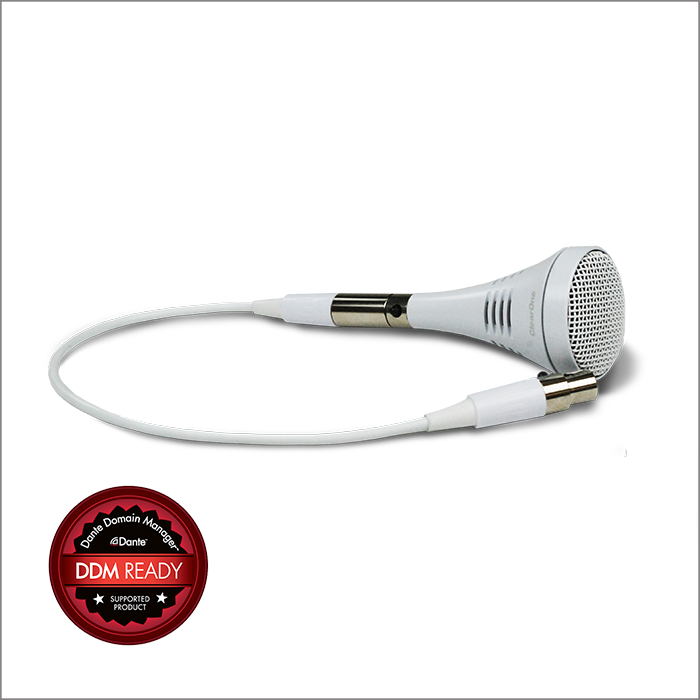

A built-in Dante audio networking interface, supports daisy-chain options for conferencing, sound reinforcement and audio-distribution applications.

Key Highlights

  • Most competitively-prices, "steerable" tri-element hanging mic arrays with digital Dante™ interface.
  • New Significantly wider coverage area than original ClearOne CMA for larger spaces, coveringsystem covering up to 4 rooms with a single CMA system.
  • Arrays offer superior audio quality with wide bandwidth & low noise, optimized for speech-intelligibility.
  • Gets microphones “off the table” area while maintaining speech quality and intelligibility required for successful conferences.
  • At just 1.5” x 3”, it is the smallest & most unobtrusive multi-element microphone array
  • “Pre-integrated” to work seamlessly with ClearOne Audio & Video products; while also compatible with other professional systems
  • Plenum-rated for flexible placement options.
  • Multicolor LED indicators on every mic element for system status.
  • Numbered Mic elements for ease of set-up, management & troubleshooting.
  • Completely adjustable drop-down cable- between 0 and 7 feet to match most room environments.
  • Robustly Shielded against RF & Electrical interferences.
  • Attractive Capsules offered in Black or White to compliment most room environments .

Applications

  • Audio conferencing
  • Video collaboration
  • Sound reinforcement
  • Audio distribution

Workspaces

  • Huddle spaces
  • Boardrooms
  • Conference rooms
  • Training rooms
  • Lecture halls
  • Courtrooms
  • Telemedicine facilities

A built-in Dante audio networking interface, supports daisy-chain options for conferencing, sound reinforcement and audio-distribution applications.

ACOUSTIC CHARACTERISTICS

  • Element: Condenser (Electret)
  • Polar Pattern: 3 X 120° Cardioid Patterns, covering 360°
  • Signal/Noise Ratio: 74 dBA @ 1 kHz
  • Frequency Response: 70 Hz – 20 kHz
  • Sensitivity: -37dB @ 1 kHz (0 dB = 1V / Pa)
  • Max Sound Pressure Level: 120 dB SPL
  • RF Immunity: 100% immunity, fully balanced twisted pair throughout

POWER & THERMAL

  • Power Type: PoE
  • Port Type: RJ-45
  • Power Source: PoE power injector, PoE Ethernet Network Switch
  • PoE In: IEEE 802.3af CLASS III, Mode A or B Modes A and B refer to whether power can be supplied over data pairs in the CAT5 cable. Mode A means power can be supplied by either spare or data pairs, and Mode B means power can only be supplied by spare pair
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Impedance: 200 Ω
  • Power Consumption: 8.5 Watts Typical with 4 Mic Capsules
  • Operating Temperature: 41º to 104º F (5º to 40º C)

CABLES

  • Junction to Interface/Junction Box: RJ45 CAT5e/CAT6 24AWG (max 33 ft)
  • Interface Box to Network Switch: RJ45 CAT5e/CAT6 24AWG (max 330 feet)
  • Network Switch to Dante DSP Mixer: RJ45 CAT5e/CAT6 24AWG (max 330 feet)
  • Junction Box to Mic Capsule: Proprietary Mic Array cable (max 7 ft)

MECHANICAL

  • DIMENSIONS (W x D x H)
    - Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
    - Digital Dante Interface: 6.8" x 6.7" x 1.7" (172 mm x 169 mm x 43 mm)
    - Digital Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)
  • WEIGHT
    - Mic Capsule: 6 oz (170 g)
    - Digital Dante Interface: 21.6 oz (612 g)
    - Digital Junction: 7.2 oz (204 g)

MIC ARRAY COLOR FINISH

  • White or Black

COMPLIANCE

  • FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)
