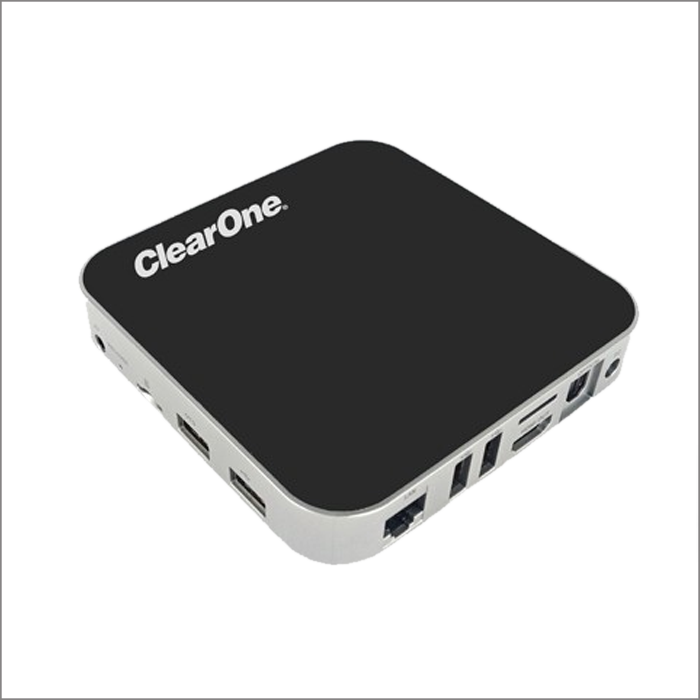

VIEW® Pro Decoder D310
A VIDEODSP™ product, the VIEW® Pro D310 Decoder supports distribution of all digital media via existing IP networks and infrastructure to single-image, full-screen video applications, at an unrivaled cost advantage.
- Supports all AV distribution via your existing IP network infrastructure to single image large display screens Most economical VIEW Pro Decoder with basic AV streaming features.
- High profile H.264 codec with lossless compression, with 1080p60 resolution, 4:2:0 color space
- Low bandwidth consumption and unlimited scalability
- Standards based streams that interoperates with 3rd party systems
- Single image, full screen streaming applications
Video
-
Digital Video Connection: HDMI 1.4a output
-
Supported resolutions: 1080p60 1920×1080, HD720 1280×720, UXGA 1600×1200, WSXGA+ 1680×1050, SXGA+ 1440×1080 & 1440×1050, WXGA 1440×900, SXGA 1280×1024, XGA 1024×768, SVGA 800×600, VGA 640×480
-
Compression Standard: H.264/MPEG4 Part 10 (AVC) Baseline, Main, High profiles up to 4.2
-
Color Space Support: YCbCr 4:2:0
Audio
-
HDMI
-
S/PDIF
-
USB (future)
Networking
-
10/100/1000 Mbps RJ45 (Gigabit)
Mechanical
-
Dimensions (W x H x D):
- 0.88” × 4.5” × 4.5”
- (22mm × 114mm × 114mm) -
Mounting: VESA mounting bracket (supports 75mm × 75mm and 100mm × 100mm)
-
Operating Temperature: 32 to 104 °F (0 to 40 °C)
-
Items Included: Power supply, VESA mounting bracket, USB to DB9 serial adapter
General
-
Power:
- External Power Supply - AC 100-240V input, DC 5V/2A power output
