  • 360º pickup range with a dead zone above increases intelligibility and reduces unwanted noise.
  • Divides the room in thirds to eliminate reverberations and minimize ambient noise pickup.
  • Provides great frequency response and dynamic range.
  • Sleek, low-profile design.
  • Compact size: 1.06” x 8.76” (27 mm x 222.5 mm).

Dimensions

  • Microphone: Height 1.06”/27 mm, Diameter 8.76”/222.5 mm

Bracket

  • Height 1.4”/35.6 mm
  • Width 8.6”/218.4 mm
  • Depth 6.5”/165.1 mm

Weight

  • Microphone: 3.25 lb/1.37 kg shipping

Bracket

  • 1.5 lb/669g shipping

Element

  • Fixed-charge back plate permanently polarized condenser

Polar Pattern

  • Half-cardioid (cardioid in hemisphere above mounting surface)

Phantom Power Requirements

  • F5-52VDC, 2mA typical

Frequency Response

  • 30Hz-20kHz



Sensitivity

  • -38dB (0dB = 1mW/1 Pa*)

Open Circuit Sensitivity

  • 5.6mV (-45dB re 1V/1 Pa*)

Impedance

  • 200

Maximum Input Sound Level

  • 130dB, 1kHz at 1% THD

Signal/Noise Ratio

  • >65dB at 1kHz/1 Pa*

Cable and Connector Types

  • 25’/7.6 m long, .209”/5.31 mm shielded cable with 3-pin XLRM-type (phased) connectors *1 Pascal = 0 dynes/cm2 = 10 microbars

Part Number

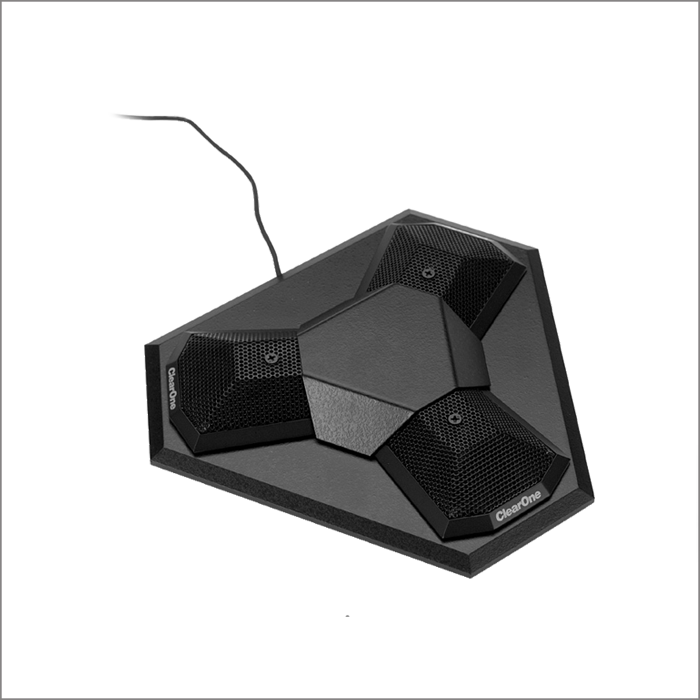

  • 910-103 -340 Delta Microphone
