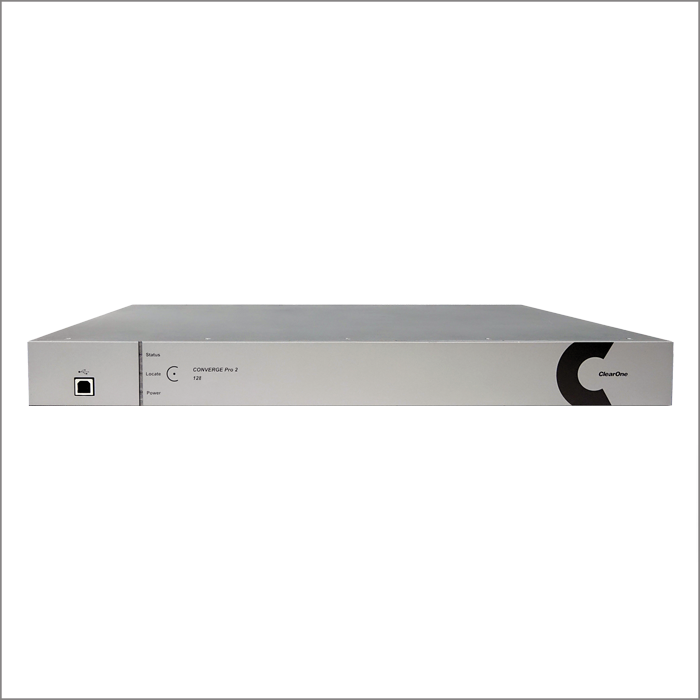

  3. CONVERGE® Pro 2 128

A powerful Digital Signal Processor with 12 configurable mic/line audio inputs, 8 configurable mic/line audio outputs, built-in USB audio, and flexible options for configuration and control.

Key Highlights

  • 12 mic/line inputs and 8 mic/line outputs.
  • Built in USB audio.
  • C-Link and P-Link connections enable addition of DSPs and peripherals.
  • Flexible control options include Touch panel controller, BYOD dialer apps or 3rd party control modules.
  • Configure an entire system of C-linked DSPs with CONSOLE® AI software.
  • Built- in DARE™ algorithm for dynamic feedback elimination.
  • Connect via C-link to VoIP and Telco enabled DSPs for conferencing.
  • Reduced foot-print and power consumption.

Applications

  • Web conferencing
  • UC conferencing
  • Sound reinforcement with DARE™

Workspaces

  • Conference rooms
  • Training rooms
  • Lecture halls
  • Courtrooms
  • Telemedicine theaters

A powerful Digital Signal Processor with 12 configurable mic/line audio inputs, 8 configurable mic/line audio outputs, built-in USB audio, and flexible options for configuration and control.

MIC/LINE INPUTS & OUTPUTS

  • Inputs: Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Outputs: Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Frequency Response: 20Hz – 22kHz @ +4dBu, +/- 0.5dBu
  • EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs = 150Ω, -126dBu
  • THD + N (Total Harmonic Distortion + Noise): 20Hz – 22kHz @ +4dBu, line level, 0.006%; 20Hz – 22kHz @ -56dBu, mic level, <0.04%
  • Dynamic Range: 20Hz – 20kHz @ 0dB, >105dB
  • Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB
  • Input Impedance: Balanced (line to ground), 2.2kΩ, 1%
  • Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
  • Maximum Input Level: -65dBu to 20dBu
  • Phantom Power: 48V, Impedance 6.81kΩ
  • Output Impedance: Balanced (line to ground), 95Ω, 1%
  • Output Level: 0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB AUDIO

  • Port Type: USB-B connector
  • Audio: Digital Audio, 2 x 2 bidirectional channels
  • Sample Rate: 48kHz
  • Sample Bit Depth: 24-Bit
  • Compatible: USB 2.0, USB 3.0

ETHERNET

  • Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
  • IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

C-LINK EXPANSION BUS

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • C-Link In & Out: Proprietary Expansion Bus
  • Audio: 64 Expansion channels
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 150’ (45M)

P-LINK PERIPHERAL BUS

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • P-Link In & Out: Proprietary Peripheral Bus
  • PoE In:
    - P-Link In Port
    - PoE 802.3af Mode B, Midspan
    - Power on “spare pairs” 4,5 and 7,8
    - Input voltage range: 48V to 56V
  • Audio: Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 200’ (60M)

Long Distance P-Link:

  • Increases P-Link distance from 200 Ft to 650 Ft
  • 650 Ft (200M) maximum cable distance between any two units
  • Cat6, 550 MHz, 23 AWG, solid conductor cable
  • Do not use Copper Clad Aluminum (CCA) cable
  • Available only for BFM2 peripheral units
  • 48V PoE Midspan Mode B power injector for 1 BFM2 unit
  • 56V PoE Midspan Mode B power injector for 3 BFM2 units

GPIO

  • Port Type: 5.08mm Green color Phoenix/Euroblock type male header
  • Support: Control, Status, Variable Voltage Control
  • Power Pin: 5V DC @ 350mA Power Source
  • Pin 1 to 4:
    - Open Collector Outputs: 40VDC @ 250mA
    - Active Outputs (Source/Sink): 5VDC @25mA
    - Logic Inputs: 40.2kΩ pull up
    - Variable Voltage Control Inputs: 5VDC max
  • Ground Pin: GND

USB CONTROL

  • Port Type: USB-B connector
  • Location: Front Panel
  • Compatible: USB 2.0, USB 3.0

LEDs

  • Location: Front Panel
  • Status LED:
    - Off: Unit still initializing
    - Blue - Fast Blinking: Stack Syncing in progress
    - Blue - Slow Blinking: Unit not configured
    - Blue - Solid: Configured unit
    - Red - Fast Blinking: Stack Sync error
  • Locate LED: Blue - Blinking: Unit “Locate” command received
  • Power LED: Blue - Solid: Unit is powered on

TOUCH SENSOR

  • Sensor Type: Capacitive Touch Button
  • Location: Front Panel

POWER & THERMAL

  • Port Type: AC Inlet
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 50 Watts Typical
  • Thermal: 170 BTU/Hr Typical
  • Operating Temperature: 14°F (-10°C) to 104°F (40°C) Ambient Temperature

DIMENSION & WEIGHT

  • RU size: 1 RU
  • Width x Depth x Height:
  • 1. Without rack-ears: 17”W x 10.73”D x 1.72”H (43.2cmW x 27.3cmD x 4.4cmH)
  • 2. With rack-ears: 19”W x 10.73”D x 1.72”H (48.3cmW x 27.3cmD x 4.4cmH)
  • Unit Weight: 9.3 lbs (4.2 kg) (Approximately)
  • Shipping Weight: 13.8 lbs (6.3 kg) (Approximately)

PACKAGE

  • Power Cord: 6’ (1.8M), Grounded, Qty 1
    Power Cord: 6’ (1.8M), Grounded, Qty 1
  • Input Connectors: Terminal Block Connector, 3 Position (Orange), Qty 12
  • Output Connectors: Terminal Block Connector, 3 Position (Black), Qty 8
  • GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
  • C-Link Cable: RJ-45 To RJ-45 Cable, 18” (45.7cm), Qty 1
  • USB Cable: USB Type A to Type B, 6’ (1.8M), Qty 1
  • Rack Ears: Pre-installed, Qty 2
  • Screw/Washer Kit: Rack Decor, Qty 4

PART NUMBERS

  • 10-3200-001 CONVERGE Pro 2 128
  • 910-3200-001-D CONVERGE Pro 2 128D
  • 910-3200-002 CONVERGE Pro 2 128T
  • 910-3200-002-D CONVERGE Pro 2 128TD
  • 910-3200-003 CONVERGE Pro 2 128V
  • 910-3200-003-D CONVERGE Pro 2 128VD
  • 910-3200-005 CONVERGE Pro 2 48T
  • 910-3200-006 CONVERGE Pro 2 48V
  • 910-3200-004 CONVERGE Pro 2 120
  • 910-3200-007 CONVERGE Pro 2 012
  • 910-3200-101 CONVERGE Pro 2 128SR
  • 910-3200-101-D CONVERGE Pro 2 128SRD
