• Built-in Native Camera Tracking for ClearOne Unite cameras and many 3rd party cameras using RS-232 and Ethernet VISCA over IP.

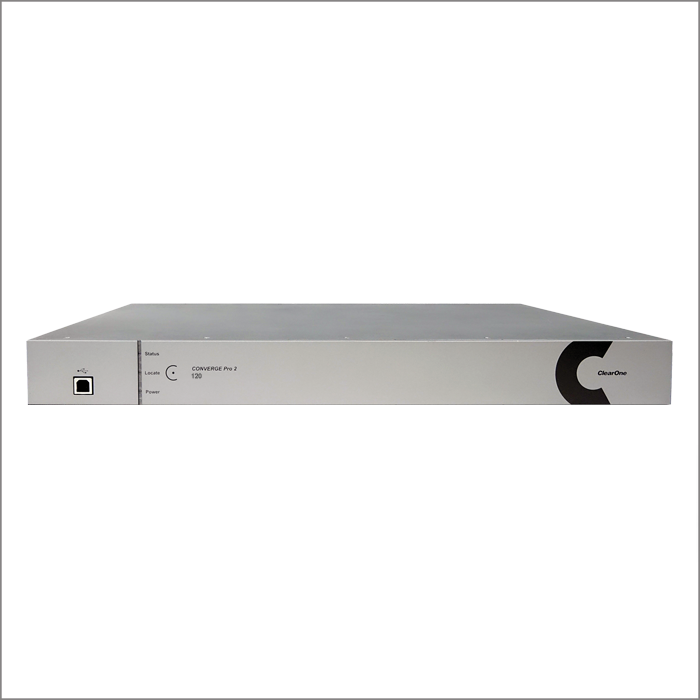

  • The 120 model mixer has 12 inputs with AEC, USB audio; GPIO, RS-232, IP control interfaces; and P-Link and C-Link expansion buses.
  • 12 mic/line inputs with AEC.
  • Increased Mic/Line outputs for other CP2 units.
  • Inputs-only DSP mixer.
  • Built-in USB for PC-based conferencing.
  • Configure and manage entire system with New CONSOLE® software, Auto-discovery of devices, MatrixView™ for entire system, FlowView™ for visualized audio signal paths and System monitoring and troubleshooting.
  • DARE™ feedback elimination.
  • Standalone and daisy-chained system.
  • Expansion bus “C-Link” with 150 channels.
  • Stack up units up to 144 Mic/Line inputs.
  • Distributed Echo Cancellation® on every mic input.
  • Next-gen Acoustic Echo Cancellation processing.
  • “P-Link” bus to connect peripheral devices.
  • Flexible control options include Touch-Panel Controller with tabletop and wall mount options, Dialer app for Windows, Mac, iOS, Android, and 3rd party control modules.
  • Reduced footprint and power consumption.
  • Acoustic Intelligence with faster convergence.
  • Advanced microphone gating.
  • Noise Cancellation with Adaptive-Ambience.
  • Daisy-chain the CONVERGE Pro 2 with the BMA 360, DIALOG® 20 2-Channel Wireless Microphone System, and other peripheral devices through P-Link.

CAMERA TRACKING

  • Supported Cameras: Unite 150, Unite 200, Unite 160, Unite 260 (One Camera per DSP)
  • Communication Protocol: VISCA
  • Communication options: Serial (RS-232) or Ethernet (VISCA over IP)

MIC/LINE INPUTS

  • Inputs: Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Frequency Response: 20Hz – 22kHz @ +4dBu, +/- 0.5dBu
  • EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs = 150Ω, -126dBu
  • THD + N (Total Harmonic Distortion + Noise):
    - 20Hz – 22kHz @ +4dBu, line level, 0.006%
    - 20Hz – 22kHz @ -56dBu, mic level, <0.04%
  • Dynamic Range: 20Hz – 20kHz @ 0dB, >105dB
  • Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB
  • Input Impedance: Balanced (line to ground), 2.2kΩ, 1%
  • Input Impedance: Balanced (line to ground), 2.2kΩ, 1%
  • Maximum Input Level: -65dBu to 20dBu
  • Phantom Power: 48V, Impedance 6.81kΩ

USB AUDIO

  • Port Type: USB-B connector
  • Audio: Digital Audio, 2 x 2 bidirectional channels
  • Sample Rate: 48kHz
  • Sample Bit Depth: 24-Bit
  • Compatible:
    - USB 2.0
    - USB 3.0

ETHERNET

  • Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
  • IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

C-LINK EXPANSION BUS

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • C-Link In & Out: Proprietary Expansion Bus
  • Audio: 64 Expansion channels
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 80’ (24M)

P-LINK PERIPHERAL BUS

  • Ports Type: RJ-45 (Cat 5e or Cat 6)
  • P-Link In & Out: Proprietary Peripheral Bus
  • PoE In:
    - P-Link In Port
    - PoE 802.3af Mode B, Midspan
    - Power on “spare pairs” 4,5 and 7,8
    - Input voltage range: 48V to 56V
  • Audio: Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 200’ (60M)

RS-232

  • Port Type: DB9 Female
  • Settings: 9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control
  • Support: Serial commands

GPIO

  • Port Type: 5.08mm Green color Phoenix/Euroblock type male header
  • Support: Control, Status, Variable Voltage Control
  • Power Pin: 5V DC @ 350mA Power Source
  • Pin 1 to 4:
    - Open Collector Outputs: 40VDC @ 250mA
    - Active Outputs (Source/Sink): 5VDC @25mA
    - Logic Inputs: 40.2kΩ pull up
    - Variable Voltage Control Inputs: 5VDC max
  • Ground Pin: GND

USB CONTROL

  • Port Type: USB-B connector
  • Location: Front Panel
  • Compatible:
    - USB 2.0
    - USB 3.0

LEDs

  • Location: Front Panel
  • Status LED:
    - Off: Unit still initializing
    - Blue - Fast Blinking: Stack Syncing in progress
    - Blue - Slow Blinking: Unit not configured
    - Blue - Solid: Configured unit
    - Red - Fast Blinking: Stack Sync error
  • Locate LED: Blue - Blinking: Unit “Locate” command received
  • Power LED: Blue - Solid: Unit is powered on

TOUCH SENSOR

  • Sensor Type: Capacitive Touch Button
  • Location: Front Panel

POWER & THERMAL

  • Port Type: AC Inlet
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 50 Watts Typical
  • Thermal: 170 BTU/Hr Typical
  • Operating Temperature: 14°F (-10°C) to 104°F (40°C) Ambient Temperature

DIMENSION & WEIGHT

  • RU size: 1 RU
  • Width x Depth x Height:
    1. Without rack-ears: 17.1 x 10.7 x 1.7 ” (431 x 273 x 44 mm)
    2. With rack-ears: 19.1 x 10.7 x 1.7 “ (483 x 273 x 44 mm)
  • Unit Weight: 9.3 lbs (4.2 kg) (Approximately)
  • Shipping Weight: 13.8 lbs (6.3 kg) (Approximately)

PACKAGE

  • Power Cord: 6’ (1.8M), Grounded, Qty 1
  • Input Connectors: Terminal Block Connector, 3 Position (Orange), Qty 12
  • GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
  • C-Link Cable: RJ-45 To RJ-45 Cable, 18” (45.7cm), Qty 1
  • USB Cable: USB Type A to Type B, 6’ (1.8M), Qty 1
  • Rack Ears: Pre-installed, Qty 2
  • Screw/Washer Kit: Rack Decor, Qty 4

PART NUMBER

  • 910-3200-004 CONVERGE Pro 2 120
