• Set up CONVERGENCE hassle free with one InSite Server for multiple subnets and VLANs.
  • The CONVERGENCE Local Agent software comes pre-installed and ready to deploy.
  • InSite Server setup and registration is simple and painless using a web browser.
  • Get up and running quickly with auto discovery of all supported devices on multiple subnets without the need for labor-intensive, individual device registration.
  • Plenty of internal storage for InSite logs and backup configuration files of managed devices.
  • Small footprint with a solid-state drive, auto power on, and a fanless enclosure for 24/7 high reliability
  • Includes extra ports for additional network connections, or optional keyboard, video, and mouse for servicing.
  • InSite Server is a convenient alternative to the downloadable CONVERGENCE Local Agent software that must be self-installed.
  • Integrates with third-party management systems via a RESTful web interface.
  • The Local Agent software is the foundation of a CONVERGENCE AV Manager system. Using the InSite Server makes laying that foundation fast and firm.

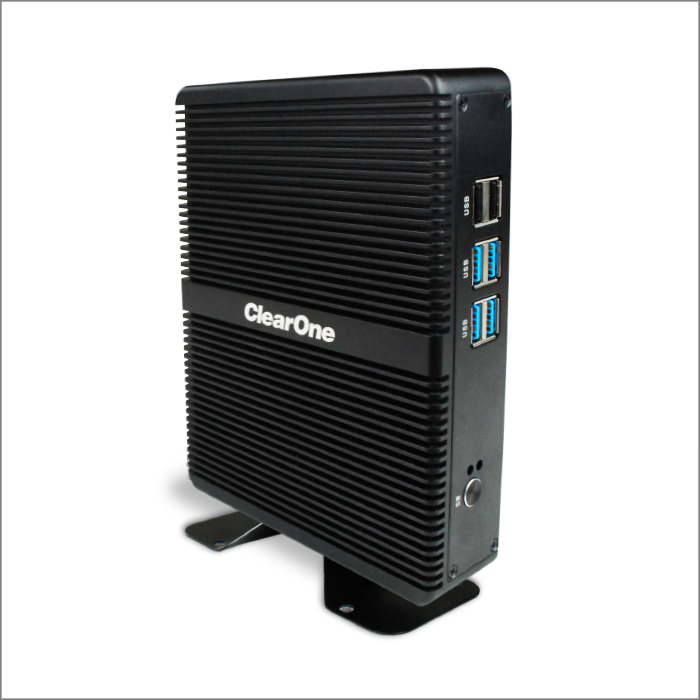

HARDWARE SPECIFICATIONS

  • Dimensions: 17.2 x 12.5 x 3.8 cm (6.77 x 4.92 x 1.5 in.)
  • Weight: 1.2 kg (2.65 lb)
  • Case Material: Aluminum alloy
  • Power: 12V power input, comes with 12V 5A power adapter; On/Off switch and Last State Auto Power On
  • Cooling: Passive Heat Sink (fanless)
  • Connectivity: USB 3.0 x 4, USB 2.0 x 2, LAN Port (1 x RJ45, Gigabit Ethernet)
  • Video: HDMI, VGA dual display (not required for setup or use)
  • 2-Year Warranty
  • Serves up to 4,000 devices

SOFTWARE SPECIFICATIONS

  • Operating System: Linux
  • Software Preinstalled: CONVERGENCE™ Local Agent AV Manager
  • Browsers supported (desktop and mobile): Firefox, Chrome, Edge, Safari

COMMUNICATIONS

  • Central Hub Connections: CONVERGENCE™ Cloud AV Manager or CONVERGENCE™ Enterprise AV Manager.
  • Web server protocol: HTTP (port 8080)
  • Minimum broadband Internet connection speed: 256 Kbps (512 Kbps recommended)
  • Remote access: Cloud AV Manager, Enterprise AV Manager, SSH, VPN
  • UDP and TCP audio device packet data on ports 3602, 3601, and 4912
  • UDP broadcast, UDP unicast and direct TCP connection via scanning, on multiple subnets
  • FTP for auto and remote updates

PRODUCTS SUPPORTED

  • CONVERGE® Pro 2 DSP Mixers and all P-Link enabled devices
  • CONVERGE Huddle DSP Mixer and all Huddle Expansion devices

SECURITY

  • Installation behind Internet firewall recommended
  • SHA-256 encrypted password storage for users, devices, and external services
  • Password trial rate limiting
  • Quality meters prevent weak passwords

PART NUMBER

  • 910-1000-001
