Three wide-range microphones mounted in a single array, provide the rich sound of three individual unidirectional microphones while maintaining full 360-degree coverage.

Key Highlights

  • Optimized for speech-intelligibility with full audio bandwidth and highest SNR. 100% shielded against RF interference.
  • Full 360-degree coverage
  • LED indicators for On/Mute.
  • Optimized for speech-intelligibility with full audio bandwidth and highest SNR.
  • 100% shielding against RF interference.
  • Numbered microphone elements for easy identification.
  • Height easily adjustable from 0 feet to 7 feet.
  • Sleek, unobtrusive design.
  • White or black color options.
  • Works with ClearOne and other 3rd-party DSP mixers.

Applications

  • Audio Conferencing
  • Video or web conferencing
  • Sound Reinforcement

Workspaces

  • Boardrooms
  • Conference rooms
  • Training rooms
  • Lecture halls
  • Courtrooms
  • Telemedicine facilities

Three wide-range microphones mounted in a single array, provide the rich sound of three individual unidirectional microphones while maintaining full 360-degree coverage.

ACOUSTIC CHARACTERISTICS

  • Element: Condenser (Electret)
  • Polar Pattern: 3 X 120° Cardioid Patterns, covering 360°
  • Signal/Noise Ratio: 74 dBA @ 1 kHz
  • Frequency Response: 70 Hz – 20 kHz
  • Sensitivity: -37dB @ 1 kHz (0 dB = 1V / Pa)
  • Max Sound Pressure Level: 120 dB SPL
  • RF Immunity: 100% immunity, fully balanced twisted pair throughout

POWER & THERMAL

  • DC Power: 9Vdc @ 0.5A
  • Impedance: 200 Ω
  • Operating Temperature: 41º to 104º F (5º to 40º C)

CABLES

  • Junction Box to Interface Box: RJ45 CAT5e/CAT6 24AWG (max 200 ft)
  • Junction Box to Mic Capsule: Proprietary Mic Array cable (max 7 ft)

MECHANICAL

  • DIMENSIONS (W x D x H):
    - Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
    - Analog-X Interface: 6.8" x 4.1" x 1.7" (172 mm x 103 mm x 43 mm)
    - Analog-X Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm)
  • WEIGHT:
    - Mic Capsule: 6 oz (170 g)
    - Analog-X Interface: 13 oz (370 g)
    - Analog-X Junction: 6.5 oz (185 g)

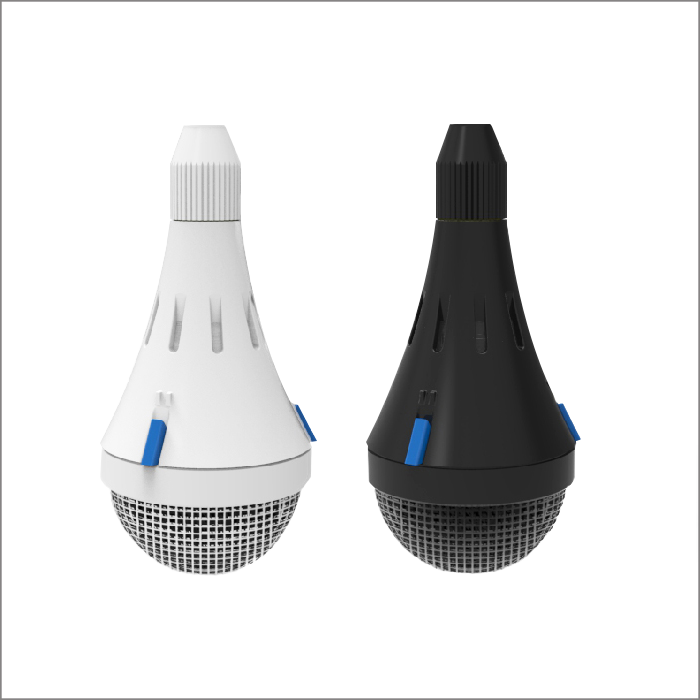

MIC ARRAY COLOR FINISH

  • White or Black

COMPLIANCE

  • FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)
