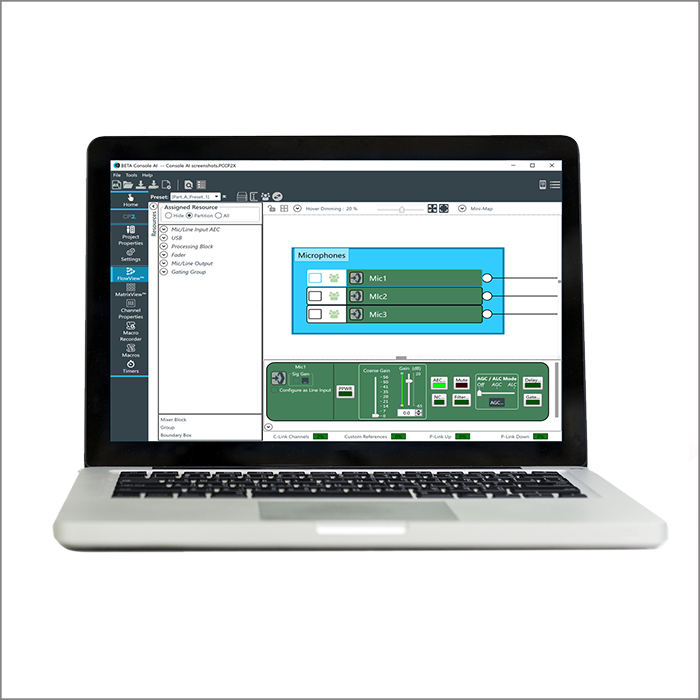

  • FlowView™ enhanced visualization tools dramatically streamline the system design, programming and review process. Visual language elements include drag-and-drop, boundary boxes, mixer blocks, route highlighting, and custom routing lines.
  • The Audio Intelligence Workflow Checklist guides you as you build your system to make sure that you never miss a step.
  • The easy-to-use audio channel grouping feature simplifies system flow views and creates unified group controls without compromising individual channel control.
  • Provides a seamless design interface even when linking multiple CP2 processors, allowing large systems to be created.
  • Provides two room design modes—Simple and Advanced. Simple mode is ideal for single-room designs, while Advanced mode offers additional controls and features to create complex multi-room designs.
  • Supports enhanced network connection access and security on CP2 mixers using 802.1X protocols.
  • Supports configuration of native CP2 camera tracking, which provides direct serial and VISCA over IP camera control.
  • Configure custom BMA 360 beam patterns for optimized performance in acoustically challenging rooms or when covering unique seating arrangements.
  • Presets, partitions and GPIO allow simple serial control commands to execute complex configuration changes instantly.
  • Macros can be easily programmed utilizing the Macro Wizard and Command recorder.
  • The built in Software and Firmware update manager keeps both software and firmware versions up to date.
  • MatrixView™ and FlowView™ modes provide multiple ways of seeing routing and configuration data in the same software interface.
  • Auto Discovery utility rapidly identifies and lists all supported equipment connected to USB or available over network.
  • The Audio Intelligence Project Audit checks your design and reports errors and warnings to alert you of potential problems.

WIRELESS MICROPHONE SYSTEM

  • Up to 24-bit, 48 KHz, digital audio RF technology
  • Compatable with Windows, iOS, Android and MAC

INSTALLATION  REQUIREMENTS

  • CONSOLE AI may be installed on any PC that meets the following requirements:
    • Windows 10 and 11, all versions; 32-bit or 64-bit
    • 1 gigahertz (GHz) or faster processor
    • 1 gigabyte (GB) of 32-bit RAM or 2 GB of 64-bit RAM
    • 160 Megabytes (MB) of hard drive space
    • Minimum screen resolution of 1024 x 768

REQUIRED NETWORK PROTOCOLS

  • UDP data sent via broadcast and directed IP
  • FTP file transfer to and from networked devices
  • FTP web server access for firmware and software updates
  • Ports required:
    •  21 - FTP
    • 3602 - UDP Device Discovery
    • 4912 - TCP Communication



PRODUCTS SUPPORTED

  • Version 5.x and higher Converge Pro 2 DSP Mixers and associated peripheral devices
  • Version 5.x and higher Huddle DSP Mixers and associated peripheral devices

LANGUAGES SUPPORTED

  • English, Spanish, German, Japanese, Chinese (Simplified), Korean, Arabic, Russian, and French

PART NUMBER

  • SWR-1000-001
